Panduit FZ2ERLNLNSNM002 | Opti-Core 2 Fiber Patch Cord, OM4, LC Dup...
Description
Description
Our LC duplex patch cord offers reliable, high-speed connections for voice, data, or video in data centers, offices, and telecom rooms, with fire-retardant options.

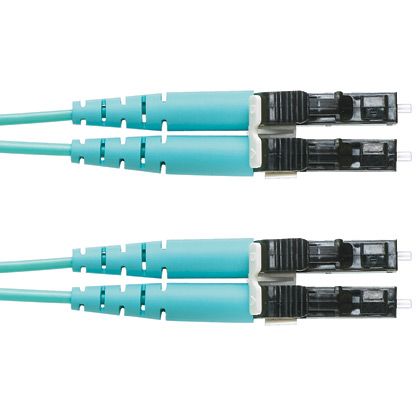

The duplex fiber patch cord is OM4 with 1.6mm jacketed cable. It is Riser (OFNR) rated, features LC Duplex connectors, has standard insertion loss, and is 2 meters long.
Panduit Opti-Core Fiber Optic Patch Cord, 2 Fibers, 32.81 ft Length, LC Duplex to LC Duplex Connector, 125 um Clad Dimension, 0.25 dB Attenuation, LSZH, OM4, Aqua
Panduit - FZ2ERLNLNSNM002 - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
Specifications
Specifications
Panduit - FZ2ERLNLNSNM002 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FZ2ERLNLNSNM002 |
| Connector Type | Lc - Lc |
| Fiber Type | Om4 |
| Length | 2 M | 6.56 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Sub Brand | Opti-Core |
| Flammability Rating | Riser (OFNR) |
| Insertion Loss Performance | Standard |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.62 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 6.5 |
| Overall Length (m) | 2 |
| Cable Color | Aqua |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| UPC | 07498392282 |
Panduit - FZ2ERLNLNSNM002 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
