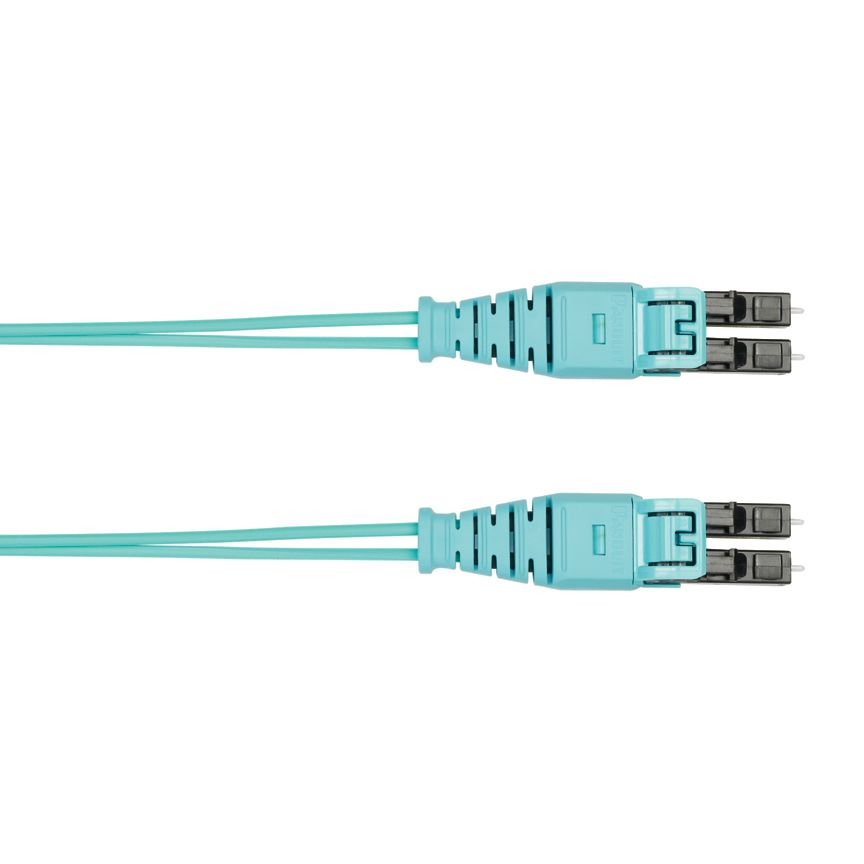

Panduit FZ2ERQ1Q1NNM039 | Fiber Optic Patch Cord
Description
Description
2 fiber OM4 patch cord, LC push pull to LC push pull, 16mm jacket, riser (OFNR) rated, Ultra IL, 39m
Push-pull LC duplex fiber optic patch cords containing the custom push-pull strain relief boot and duplex clip, allow users easy accessibility when deploying very high density LC patch fields in data center applications. Available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances and OM4, OM3 or OS1/OS2 fiber types to meet the demands of today's highest speed applications.
Panduit Opti-Core Fiber Optic Patch Cord, Duplex OM4 Multi-Mode Riser, 2 Fibers, 127.95 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket, -10 to 60 deg C
Panduit - FZ2ERQ1Q1NNM039 - Features
- Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
- High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
- Improved adapter protective cap design maximum protection from contamination, protective cap fully surrounds split sleeve opening
- Short flange design for improved modularity and higher density usage
- QC number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
Specifications
Specifications
Panduit - FZ2ERQ1Q1NNM039 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om4 |
| Length | 39 M | 127.95 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Push-Pull |
| Connector 2 Type | LC Push-Pull |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.1 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 127.95 |
| Overall Length (m) | 39 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.062992 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA-568-C.3,TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord componentsmeet the requirements of Directive 2002/95/EC. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498312449 |
Panduit - FZ2ERQ1Q1NNM039 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
Documents and Downloads
Documents and Downloads
- Panduit FZ2ERQ1Q1NNM039 Specification Sheet
- Panduit FZ2ERQ1Q1NNM039 Installation Documents
- Panduit FZ2ERQ1Q1NNM039 Brochures
- Panduit FZ2ERQ1Q1NNM039 Selection Guides
- Panduit FZ2ERQ1Q1NNM039 Brochures
- Panduit FZ2ERQ1Q1NNM039 Specification Sheets
- Panduit FZ2ERQ1Q1NNM039 Specification Sheets
- Panduit FZ2ERQ1Q1NNM039 RoHS Statement
