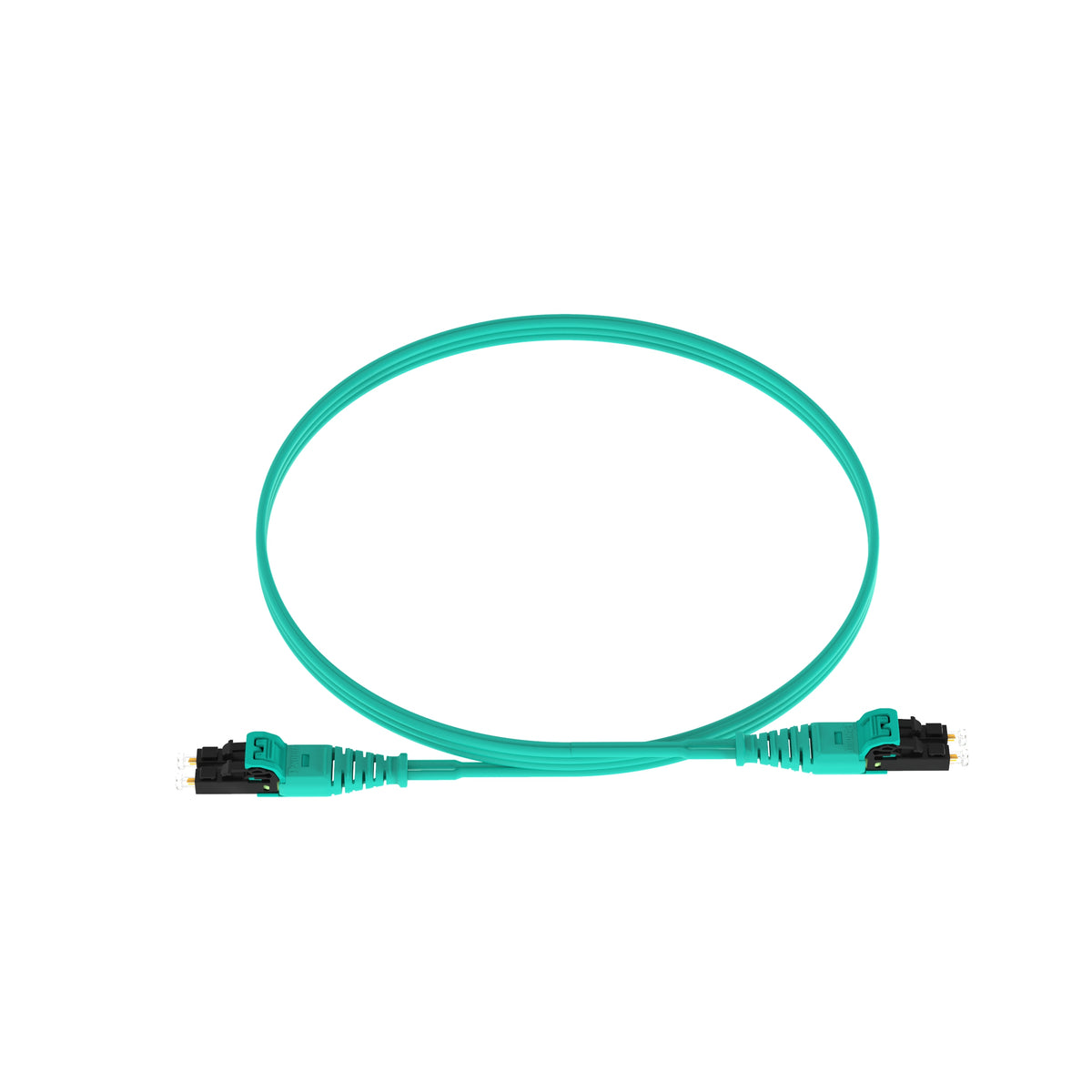

Panduit FZ2ERQ1Q1SNM001 | Opti-Core 2 Fiber Patch Cord, OM4, LC Pus...
Description
Description
Our push-pull LC duplex zip patch cord offers a space-saving solution for your data center. With easy in-connection and a compact design, futureproof your infrastructure for faster speeds.
The duplex fiber patch cord is OM4 with a 1.6mm jacket. It is Riser (OFNR) rated and features LC Push Pull connectors. It has standard insertion loss and is 1 meter in length.
Panduit Opti-Core Fiber Optic Patch Cord, OM4, 2 Fibers, 3.28 ft Length, LC Duplex Push Pull Connector, 50 um Core, 125 um Clad, 0.25 dB Attenuation, Low-Smoke Zero Halogen Jacket, Aqua Jacket, -10 to 60 deg C
Specifications
Specifications
Panduit - FZ2ERQ1Q1SNM001 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FZ2ERQ1Q1SNM001 |
| Connector Type | Lc - Lc |
| Fiber Type | Om4 |
| Length | 1 M | 3.28 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex Push-Pull |
| Connector 2 Type | LC Duplex Push-Pull |
| Sub Brand | Opti-Core |
| Flammability Rating | Riser (OFNR) |
| Insertion Loss Performance | Standard |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.062 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 3.2 |
| Overall Length (m) | 1 |
| Cable Color | Aqua |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| UPC | 07498399457 |
Panduit - FZ2ERQ1Q1SNM001 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
Documents and Downloads
Documents and Downloads
- Panduit FZ2ERQ1Q1SNM001 Specification Sheet
- Panduit FZ2ERQ1Q1SNM001 Installation Documents
- Panduit FZ2ERQ1Q1SNM001 Part Drawings
- Panduit FZ2ERQ1Q1SNM001 Selection Guides
- Panduit FZ2ERQ1Q1SNM001 Brochures
- Panduit FZ2ERQ1Q1SNM001 Specification Sheets
- Panduit FZ2ERQ1Q1SNM001 Specification Sheets
- Panduit FZ2ERQ1Q1SNM001 RoHS Statement
