Panduit FZ2ERQ1Q1SNM009 | OM4 2F 1.6MM PC OFNR PUSHPULL LC/PUSHPULL...
Regular price
$82.24
Unit price
Brand: Panduit
|
SKU:
682432
Regular price
$82.24
Unit price
Description
Description

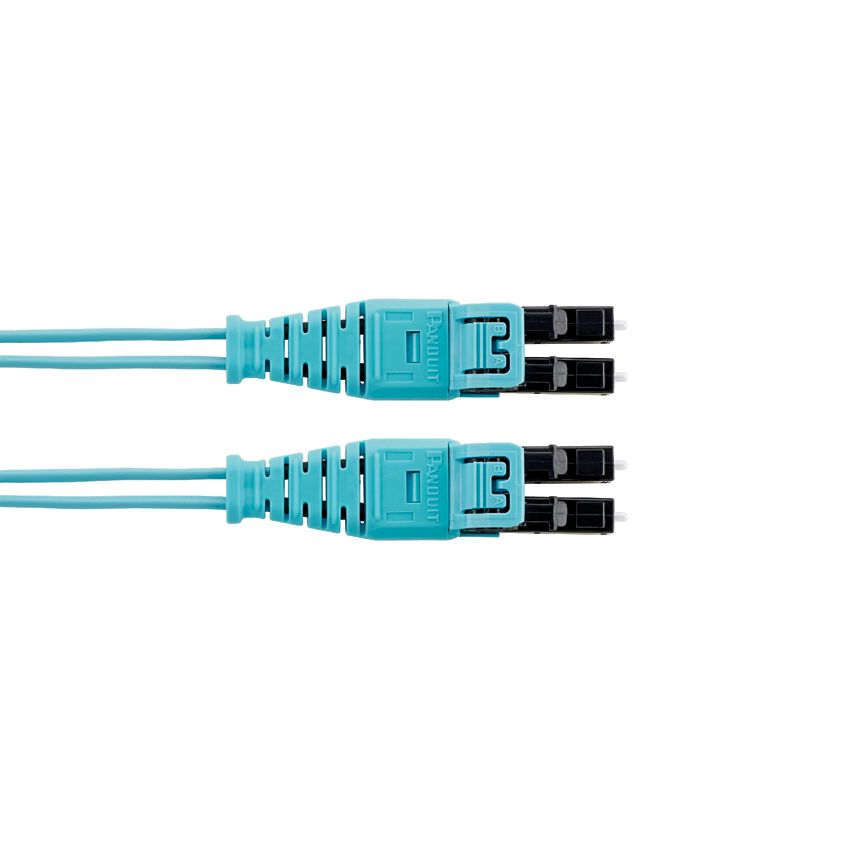

Panduit FZ2ERQ1Q1SNM009 | OM4 2F 1.6MM PC OFNR PUSHPULL LC/PUSHPULL LC STD IL 9M
Our push-pull LC duplex zip patch cord offers a space-saving solution for your data center. With easy in-connection and a compact design, futureproof your infrastructure for faster speeds.
2 fiber OM4 patch cord, LC push pull to LC push pull, 16mm jacket, riser (OFNR) rated, Standard IL 9 meters
Panduit Opti-Core Fiber Optic Patch Cord, Duplex, 2 Fibers, 9 m Length, LC Push-Pull Connector, 125 um Clad, 0.25 dB Attenuation, Low-Smoke Zero Halogen Jacket, Aqua Jacket, -10 to 60 deg C
Specifications
Specifications
Panduit - FZ2ERQ1Q1SNM009 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FZ2ERQ1Q1SNM009 |
| Connector Type | Lc - Lc |
| Fiber Type | Om4 |
| Length | 9 M | 29.53 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex Push-Pull |
| Connector 2 Type | LC Duplex Push-Pull |
| Sub Brand | Opti-Core |
| Flammability Rating | Riser (OFNR) |
| Insertion Loss Performance | Standard |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.62 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 29.5 |
| Overall Length (m) | 9 |
| Cable Color | Aqua |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| UPC | 07498399477 |
Panduit - FZ2ERQ1Q1SNM009 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
Documents and Downloads
Documents and Downloads
- Panduit FZ2ERQ1Q1SNM009 Specification Sheet
- Panduit FZ2ERQ1Q1SNM009 Installation Documents
- Panduit FZ2ERQ1Q1SNM009 Part Drawings
- Panduit FZ2ERQ1Q1SNM009 Selection Guides
- Panduit FZ2ERQ1Q1SNM009 Brochures
- Panduit FZ2ERQ1Q1SNM009 Specification Sheets
- Panduit FZ2ERQ1Q1SNM009 Specification Sheets
- Panduit FZ2ERQ1Q1SNM009 RoHS Statement
