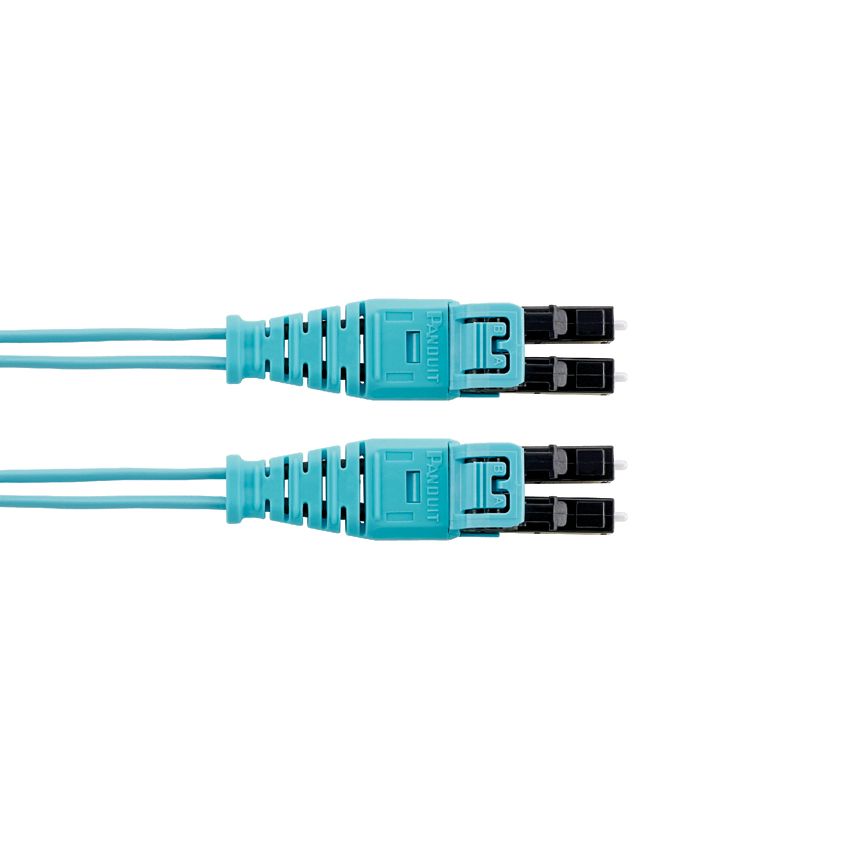

Panduit FZ2ERQ1Q1SNM011 | Fiber Optic Patch Cord
Description
Description
2 fiber OM4 patch cord, LC push pull to LC push pull, 16mm jacket, riser (OFNR) rated, Standard IL 11 meters
Push-pull LC duplex fiber optic patch cords containing the custom push-pull strain relief boot and duplex clip, allow users easy accessibility when deploying very high density LC patch fields in data center applications. Available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances and OM4, OM3 or OS1/OS2 fiber types to meet the demands of today's highest speed applications.
Panduit Opti-Core Fiber Optic Patch Cord, Duplex OM4 Multi-Mode Riser, 2 Fibers, 36.09 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket, -10 to 60 deg C
Panduit - FZ2ERQ1Q1SNM011 - Features
- Blockout devices block unauthorized access to LC duplex switch and HBA/NIC ports, switch outlets and user outlets, saving time and money associated with security breaches, network downtime, repairs and hardware replacement
- Device fits all LC duplex adapters/receptacles to accommodate all retrofit applications and new installations
- Mechanically protects the LC adapter/receptacle optics and renders it eye safe to prevent exposure to laser radiation and contamination on dust sensitive transceivers
- Can be installed without interfering with adjacent jacks, plugs or connectors, even in high density applications
- Assists installation in high density patch fields and allows access to the network infrastructure only to authorized personnel
- Improves aesthetics or enables color coding for visual identification
Specifications
Specifications
Panduit - FZ2ERQ1Q1SNM011 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om4 |
| Length | 11 M | 36.09 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Push-Pull |
| Connector 2 Type | LC Push-Pull |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 36.09 |
| Overall Length (m) | 11 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.062 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA-568-C.3,TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord componentsmeet the requirements of Directive 2002/95/EC. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498399504 |
Panduit - FZ2ERQ1Q1SNM011 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
