Brand: Panduit
|
SKU:
10496211

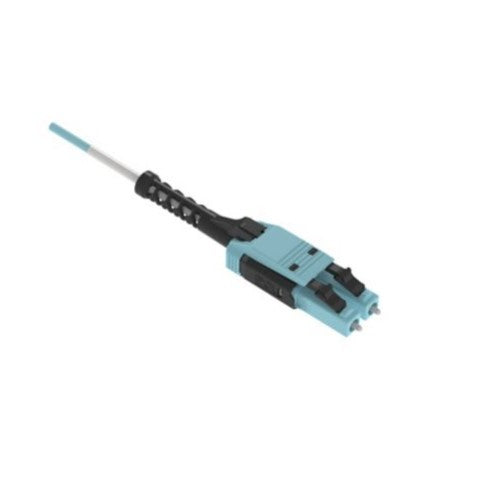

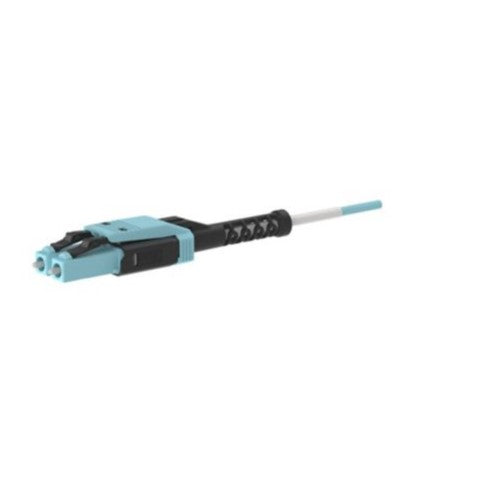

Panduit FZ2RPU1U1ONM012 | OM4 2 Fiber Patch cord OFNP LC Uniboot/LC Uni A-B Opt IL 12m
Regular price
$92.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FZ2RPU1U1ONM012 | OM4 2 Fiber Patch cord OFNP LC Uniboot/LC...
Regular price
$92.68
Unit price
Description
Description
Panduit FZ2RPU1U1ONM012 | OM4 2 Fiber Patch cord OFNP LC Uniboot/LC Uni A-B Opt IL 12m
OM4 duplex fiber patch cord with a 2.0mm cable jacket. Plenum rated, features LC Uniboot pull-boot connectors, and has Optimized insertion loss, 012 meters in length
Specifications
Specifications
Panduit - FZ2RPU1U1ONM012 - Specifications
| Fiber Type | OM4 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Sub Brand | Opti-Core® |
| Flammability Rating | Plenum (OFNP) |
| Fiber Diameter (µm) | 0.4 |
| Outer Diameter (In.) | 0.08 |
| Outer Diameter (mm) | 2 |
| Overall Length (ft.) | 39.4 |
| Overall Length (m) | 12 |
| Cable Color | Aqua |
| Product Type | LC Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | RoHS Compliant. Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), All patch cord components meet the requirements of Directive 2002/95/EC. |
| Part Features | OM4, Uniboot pull-boot connector, Duplex LC, Plenum, Multi Mode, Optimized Insertion Loss |
Panduit - FZ2RPU1U1ONM012 - Package Information
| UPC | 61305680729 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0273 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.2728 |
Panduit - FZ2RPU1U1ONM012 - Video
| Panduit FZ2RPU1U1ONM012 Videos | Click to View |
|---|
Documents and Downloads
Documents and Downloads
