Brand: Panduit
|
SKU:
894603
Panduit FZ8HP5NLSQNF006 | Harness Cable Assembly | UPC - 07498361204
Regular price
$538.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FZ8HP5NLSQNF006 | Harness Cable Assembly | UPC - 07498361204
Regular price
$538.77
Unit price
Description
Description

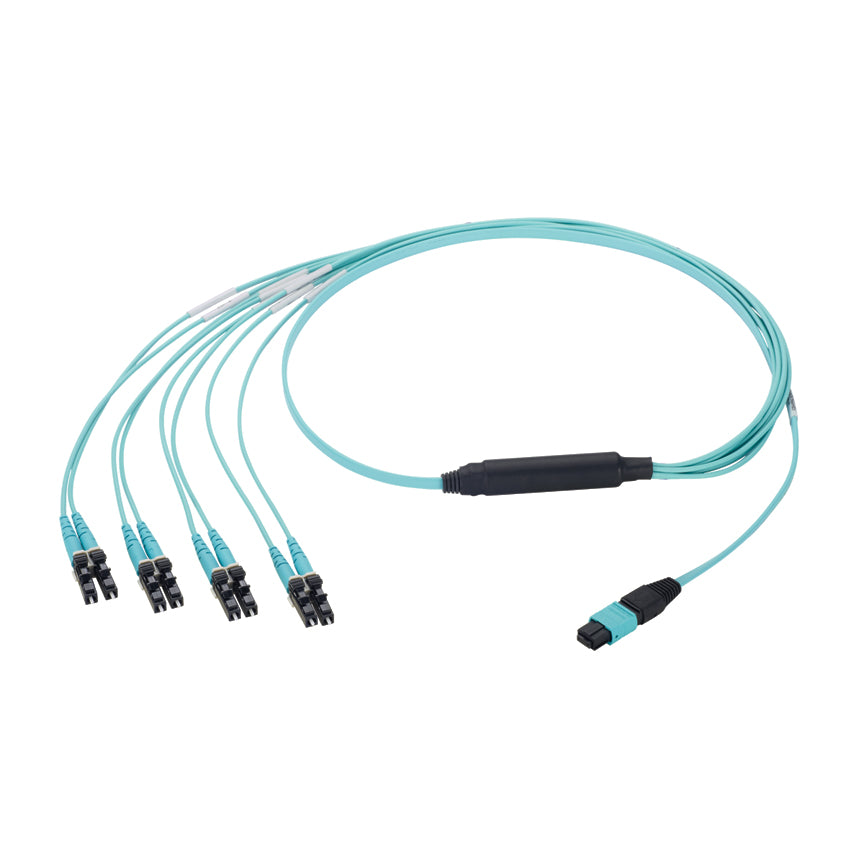

OM4 8-fiber harness cable assembly plenum (OFNP) rated, MPO female to LC duplex 60cm (24 inch) equal breakout, QSFP to SFP Migration Harness Std IL, Aqua, 6 ft.
Panduit Harness Cable Assembly Key Specs
| Fiber Type | OM4 |
| Number of Fibers | 8 |
| Connector 1 Type | MPO Female |
| Connector 2 Type | LC Duplex |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | 32 |
| Environment | Indoor |
| Maximum Installation Temperature (°C) | 50 |
| Maximum Installation Temperature (°F) | 122 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, TIA/EIA 604-12 (FOCIS-12) and RoHS Compliant |
| Flammability Rating | Plenum |
| Product Type | Harness Cable Assembly |
Panduit Harness Cable Assembly Data Sheets
| Application Notes | QuickNet Harness Cable Assemblies Solution Guide for Switching Applications (Brocade): FBAN06--WW-ENG | Download and View |
| Application Notes | QuickNet Harness Cable Assemblies Solution Guide for Switching Applications (Cisco): FBAN07--WW-ENG | Download and View |
| Part Drawings | QuickNet QSFP Harness Cable Assemblies: M02680FQ-DC | Download and View |
