Brand: Panduit
|
SKU:
244930
Panduit FZBA1.5X4 Bracket, Adjustable ";Z";, Fiber Duct
Regular price
$25.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FZBA1.5X4 Bracket, Adjustable ";Z";, Fiber Duct
Regular price
$25.06
Unit price
Description
Description

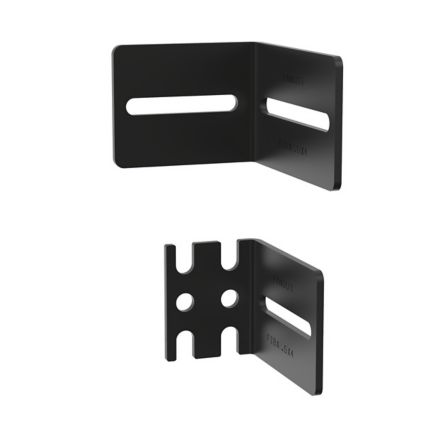

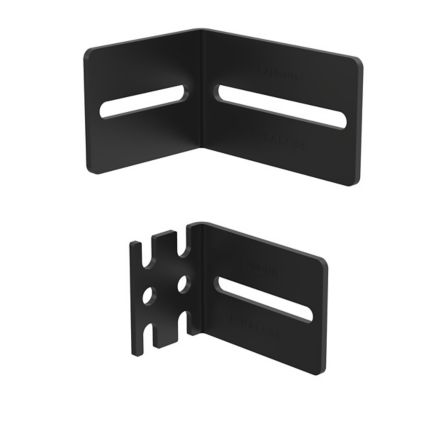

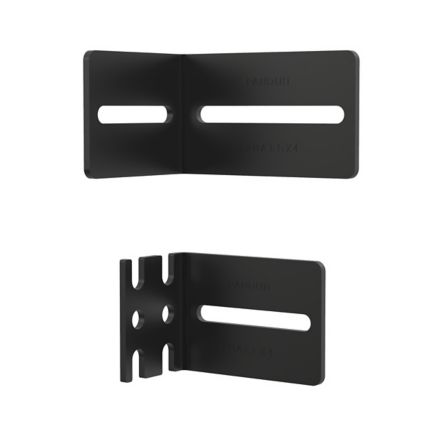

Panduit FZBA1.5X4 | FiberRunner Adjustable Z Bracket
The FiberRunner Adjustable Z Bracket is used in a cable routing system to offset a FiberRunner System from the mounting surface. The adjustable Z bracket adjusts from 1.5 inches (38mm) to 4 inches (101mm). It is typically used on an equipment rack. The adjustable Z bracket protects the cable and strengthens the cable routing system.
Panduit - FZBA1.5X4 - Features
- Bracket used to offset Fiber-Duct System from mounting surface
- Typically used on the front of an equipment rack
Specifications
Specifications
Panduit - FZBA1.5X4 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FZBA1.5X4 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FZBA1.5X4 |
| Item Description | FiberRunner Adjustable Z Bracket |
| Application | (1) The Fiber-Duct 2X2 and 4X4 Routing Systems are Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling. (2) it is Suited for Data Center Applications. |
| Product Type | Adjustable "Z" |
| Color | Black |
| For Use With | Fiber-Duct System |
| Includes | (1) Bracket (Rack Side), (1) Bracket (Duct Side), (2) #10-32x1/2 Phillips Truss-Head Machine Screws, (2) #10 Helical Spring Lockwashers, (2) #10-32 Machine Screw Nuts,(1) Bag of Four (4): #12-24x1/1/2 Type 1 Combination Drive Round Head Machine Screw, Do |
| Material | Steel |
| Number of Pieces | 9 |
| Overall Height (In.) | 2.6 |
| Overall Height (mm) | 66 |
| Overall Length (In.) | 1.9 |
| Overall Length (mm) | 48.3 |
| Overall Width (In.) | 1.5 |
| Overall Width (mm) | 38.1 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| Series Type | 2 x 2 and 4 x 4 Fiber-Duct Brackets |
| Part Features | Fastest installations, easy to maintain, system strength, versatility, Cable protection. |
Panduit - FZBA1.5X4 - Package Information
| UPC | 07498375973 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1748 |
