Panduit FZN0505RTPF031 | Interconnect Round Cable Assembly
Regular price
$488.87
Unit price
Brand: Panduit
|
SKU:
657497
Regular price
$488.87
Unit price
Description
Description

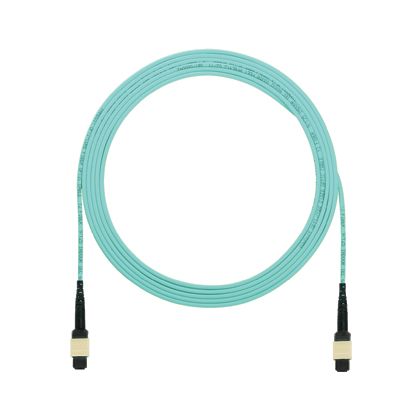

Panduit FZN0505RTPF031 | Interconnect Round Cable Assembly
12 fiber OM4, plenum rated female MTP/MPO female MTP/MPO round interconnect cable assembly
Panduit - FZN0505RTPF031 - Features
- These small cables minimize waste, optimize cable management, speed deployment, improve flexibility and manageability
- Typically used for connectivity between the switch in horizontal cabling
- Installs into QuickNet MPO patch panels on one end and switch ports on the other end
- New cable management transition allows multiple harnesses to attach to each other or be secured to a rack or cabinet with Tak-Ty hook and loop cable ties
Specifications
Specifications
Panduit - FZN0505RTPF031 - Specifications
| Fiber Type | OM4 |
|---|---|
| Number of Fibers | 12 |
| Connector 1 Type | MTP*/MPO Female |
| Connector 2 Type | MTP*/MPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 31 |
| Overall Length (m) | 9.44 |
| Fiber Diameter (µm) | 50 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA-568-C.3 and ISO/IEC 11801 IEC-61754-7 (International) TIA-604-5 (FOCIS-5) NFPA 262 (OFNP) flame rating |
| Application | Used in high-density network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas. |
| Product Type | Interconnect Round Cable Assembly |
| Boot Color | Black |
| Sub Brand | QuickNet |
| UPC | 07498347807 |
