Panduit FZTHP5NLSSNF030 | Harness Cable Assembly | UPC - 07498394095
Regular price
$694.45
Unit price
Brand: Panduit
|
SKU:
692261
Regular price
$694.45
Unit price
Description
Description

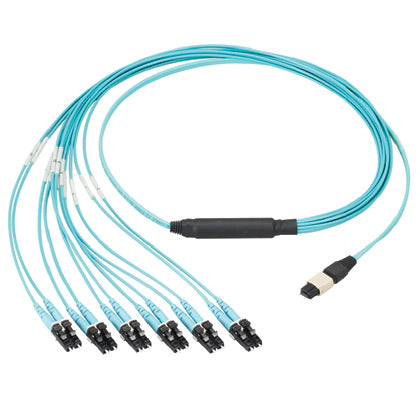

OM4 12-fiber, harness cable assembly, plenum rated, MPO female to LC duplex, 60CM (24 inch), equal breakout, Std. IL. Aqua, 30 ft.
Panduit Harness Cable Assembly Key Specs
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | MPO Female |
| Connector 2 Type | LC Duplex |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 30 |
| Overall Length (m) | 9.1 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | 32 |
| Environment | Indoor |
| Maximum Installation Temperature (°C) | 50 |
| Maximum Installation Temperature (°F) | 122 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Flammability Rating | Plenum |
| Product Type | Harness Cable Assembly |
Panduit Harness Cable Assembly Data Sheets
| Specification Sheets | QuickNet Harness and Staggered Harness Cable Assemblies: FBSP56--WW-ENG | Download and View |
| Application Notes | QuickNet Harness Cable Assemblies Solution Guide for Switching Applications (Brocade): FBAN06--WW-ENG | Download and View |
| Application Notes | QuickNet Harness Cable Assemblies Solution Guide for Switching Applications (Cisco): FBAN07--WW-ENG | Download and View |
