Brand: Panduit
|
SKU:
693561
Panduit FZTRL7N7NBNM020 | Interconnect Cable Assembly | UPC - 07498387279
Regular price
$743.89
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FZTRL7N7NBNM020 | Interconnect Cable Assembly | UPC - 07498...
Regular price
$743.89
Unit price
Description
Description

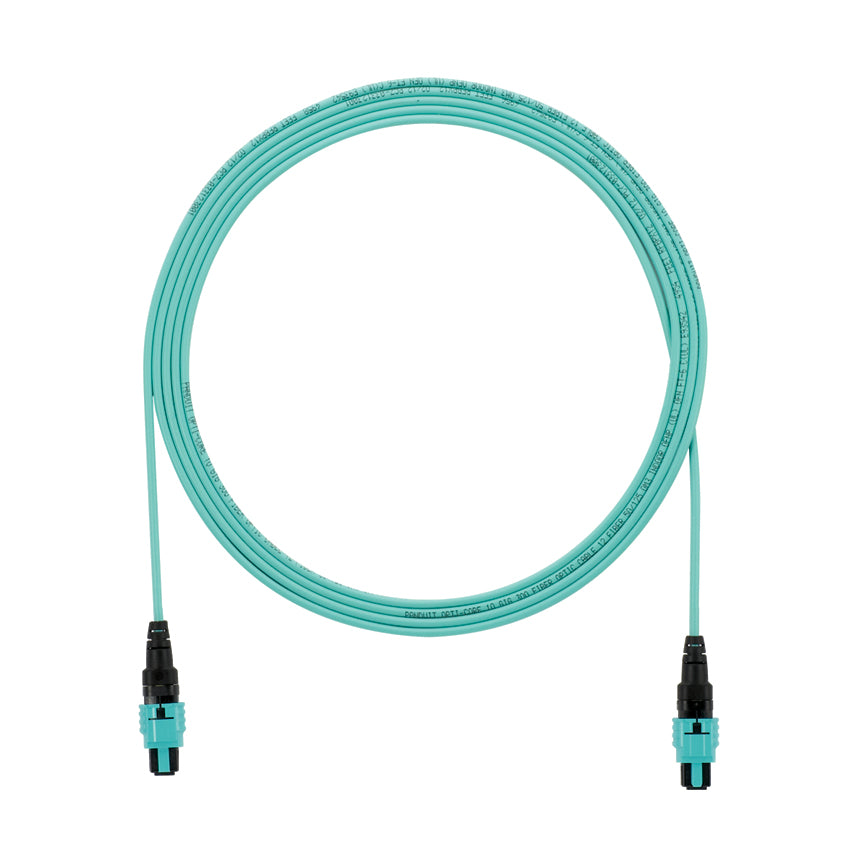

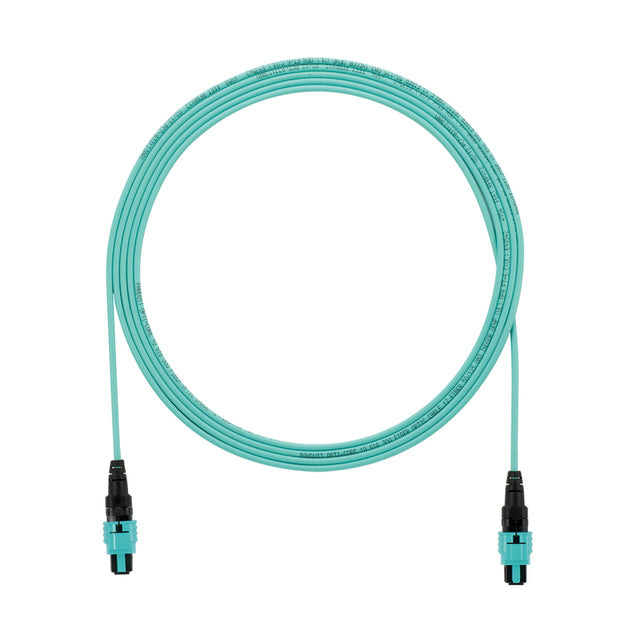

OM4 12 fiber interconnect cable assembly Low Smoke Zero Halogen ( LSZH), PanMPO female to PanMPO female, Method B Std IL with no pulling eye, 20 meters.
Panduit Interconnect Cable Assembly Key Specs
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Sub Brand | QuickNet |
| Tensile Strength (N) | 220 |
| Tensile Strength (kg) | 22.43 |
| Tensile Strength (lb) | 49.46 |
| Environment | Indoor |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds: TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
Panduit Interconnect Cable Assembly Data Sheets
| Part Drawings | QuickNet PanMPO Interconnect Cable Assemblies: 10F093BF-DC | Download and View |
| Installation Documents | PanMPO Polarity Changeover: FS041--REVA--ENG | Download and View |
| Flyers | PanMPO Connectors: 10Gig to 40Gig Ethernet Migration: FBFL02--SA-ENG | Download and View |
Panduit Interconnect Cable Assembly Environmental Information
| Panduit's RoHS Statement | Download and View |
