Brand: Panduit | SKU: 693258

Panduit FZTRP5N5NANF059 | Interconnect Cable Assembly

Name: Panduit FZTRP5N5NANF059 | Interconnect Cable Assembly
Brand: Anixter
SKU: 693258
Price: 659.39 USD
Availability: InStock

$659.39

Description

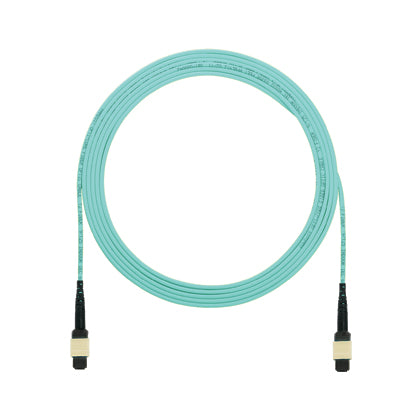

Panduit QuickNet PanMPO Interconnect Cable Assembly, 12-Fiber Round Multi-Mode OM4, MPO Female End A, MPO Female End B, 59 ft Length, Plenum, Aqua

OM4 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 59 ft

Minimize waste
Optimize cable management
Speed deployment, improve flexibility and manageability
Applications: Allows system designers to tailor configuration and reach to application requirements; to minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs.
Minimize waste
Optimize cable management
Speed deployment, improve flexibility and manageability

Connector Type	Mpo Female - Mpo Female
Fiber Type	Om4
Length	59 Ft. \| 17.98 M
Number Of Fibers	12 Fiber
Type	Trunk Cables
UNSPSC Code	26121650
Technical Information	Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1 RoHS Compliant
Fiber Type	OM4
Number of Fibers	12
Connector 1 Type	MPO Female
Connector 2 Type	MPO Female
Flammability Rating	Plenum
Maximum Connector Insertion Loss (dB)	0.5
Minimum Connector Return Loss (dB)	26
Overall Length (ft.)	59
Overall Length (m)	17.98
Fiber Diameter (µm)	50
Outer Diameter (In.)	0.12
Outer Diameter (mm)	3
Maximum Operating Temperature (°C)	70
Maximum Operating Temperature (°F)	158
Minimum Operating Temperature (°F)	32
Maximum Installation Temperature (°C)	40
Maximum Installation Temperature (°F)	104
Minimum Installation Temperature (°F)	32
Resistance Properties	Flame-Resistant
Cable Color	Aqua
UPC	07498391652
