Panduit FZTRP5N5NANF084 | Interconnect Cable Assembly | UPC - 07498...
Description
Description
MPO Interconnect Round Cable Assemblies are pre-terminated 12-fiber cable assemblies that are used in high-density network applications. These interconnect round cable assemblies are used with pre-terminated cassettes in main and horizontal cabling distribution areas. The QuickNet System meets the demands of Gigabit Ethernet, 10 Gb Ethernet and high speed Fiber Channel systems while maintaining compatibility with Ethernet. The high-density modular design fits into rack mount fiber cassette enclosures to ensure efficient use of space and rapid network deployment.

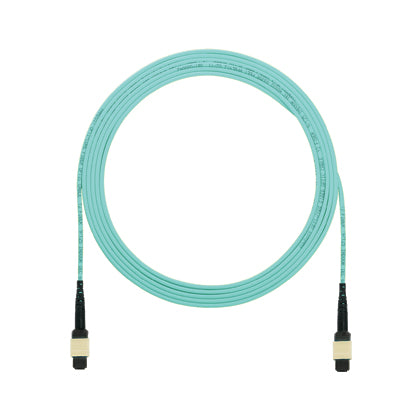

Panduit QuickNet Interconnect Fiber Cable Assembly, Multi-Mode Round, 12 Fibers, 84 ft Length, MPO Female Connector, 50 um Core Dimension, 125 um Clad Dimension, 3.5/1.5 dB at 850/1300 nm Attenuation, Plenum, OM4, Aqua, 0 to 70 deg C
Features + Benefits
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
Panduit FZTRP5N5NANF084 Key Specs
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | MPO Female |
| Connector 2 Type | MPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 84 |
| Overall Length (m) | 25.6 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
Panduit FZTRP5N5NANF084 Data Sheets
| Part Drawings | QuickNet Round Interconnect Cable Assemblies: 10F093BC-DC | Download and View |
| Technical References | Troubleshooting a Permanent Link: FBTR117--WW-ENG | Download and View |
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
