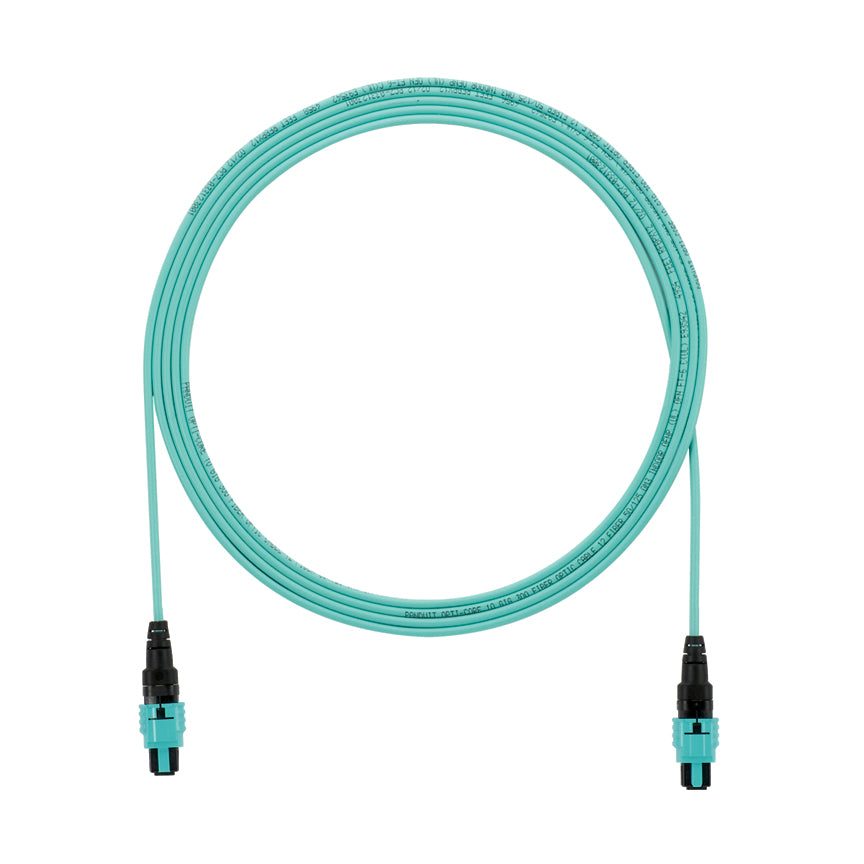

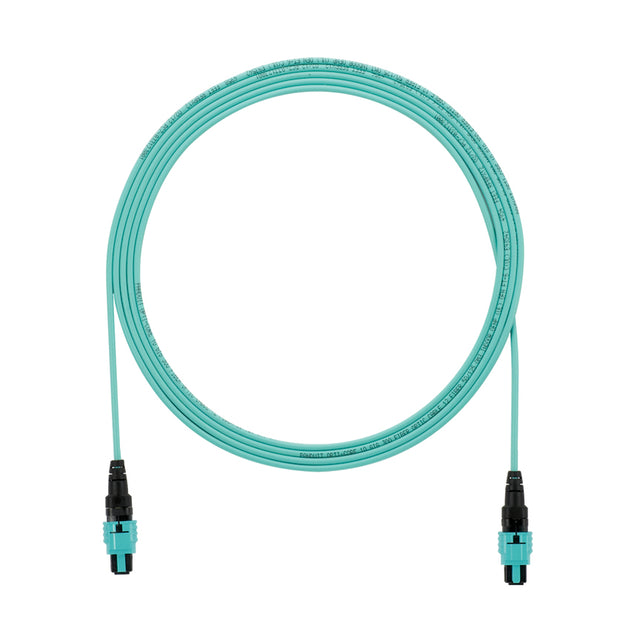

Panduit FZTRP7N7NANF138 | Interconnect Cable Assembly | UPC - 07498...
Regular price
$957.26
Unit price
Brand: Panduit
|
SKU:
693455
Regular price
$957.26
Unit price
Description
Description
12 fiber OM4 interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female Method A Std IL, with no pulling eye, 138 ft.
Panduit Interconnect Cable Assembly Key Specs
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 138 |
| Overall Length (m) | 42.06 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.118 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
Panduit Interconnect Cable Assembly Data Sheets
| Part Drawings | PanMPO to PanMPO Interconnect: 10F093BF-DC | Download and View |
| Installation Documents | PanMPO Connectors: FBPANMPOFS041--REVA--ENG | Download and View |
| Flyers | PanMPO Connectors: 10Gig to 40Gig Ethernet Migration: FBFL02--SA-ENG | Download and View |
Panduit Interconnect Cable Assembly Environmental Information
| Panduit's RoHS Statement | Download and View |
