Panduit FZTRP7N7NBNM009 | Interconnect Cable Assembly | UPC - 07498...
Description
Description
MPO interconnect round cable assemblies are pre-terminated 12-fiber cable assemblies that are used in high density network applications. These interconnect round cable assemblies are used with pre-terminated cassettes in main and horizontal cabling distribution areas. The QuickNet system meets the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel systems while maintaining compatibility with Ethernet. The high density modular design fits into rack mount fiber cassette enclosures to ensure efficient use of space and rapid network deployment.

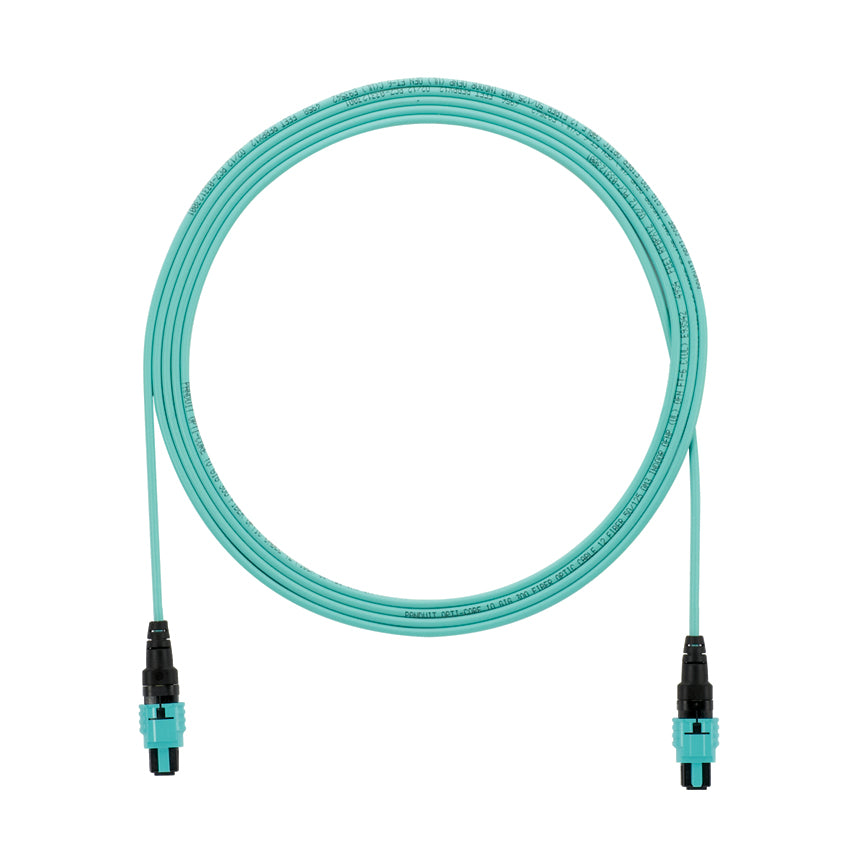

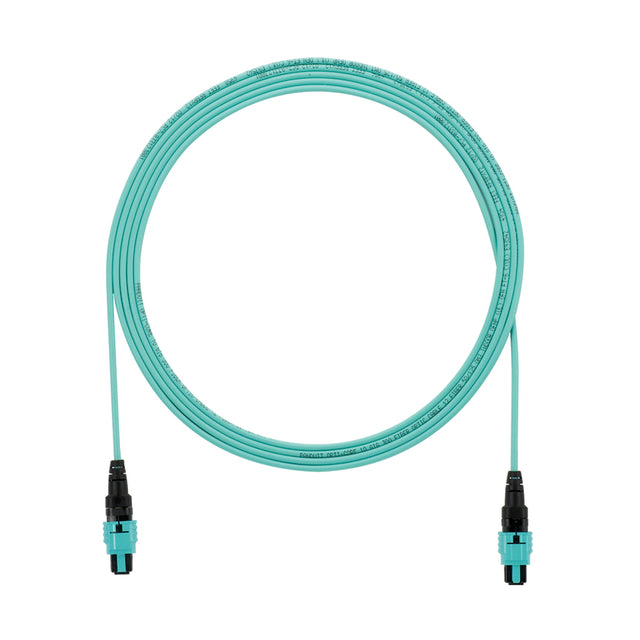

Panduit QuickNet PanMPO Fiber Cable Assembly, Interconnect OM4 Multi-Mode Plenum Round, 12 Fibers, 29.53 ft Length, Female MPO Connector, 50 um Core Dimension, 125 um Clad Dimension, 3.5/1.5 dB at 850/1300 nm Attenuation Rating, Aqua, -10 to 60 deg C
Features + Benefits
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
Panduit FZTRP7N7NBNM009 Key Specs
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 29.53 |
| Overall Length (m) | 9 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.118 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
Panduit FZTRP7N7NBNM009 Data Sheets
| Part Drawings | QuickNet PanMPO Round Interconnect Cable Assemblies: 10F093BF-DC | Download and View |
| Installation Documents | Panduit MPO Connectors Polarity Changeover: FBPANMPOFS041--REVA--ENG | Download and View |
