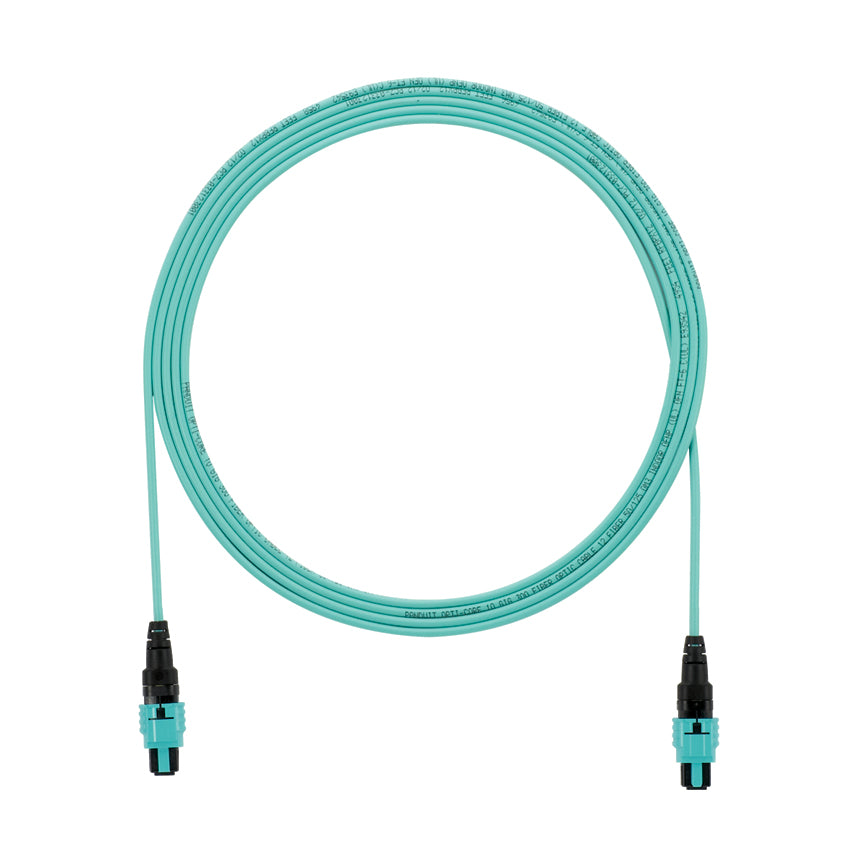

Panduit FZTRP7N7NBNM017 | Interconnect Cable Assembly
Description
Description
MPO interconnect round cable assemblies are pre-terminated 12-fiber cable assemblies that are used in high density network applications. These interconnect round cable assemblies are used with pre-terminated cassettes in main and horizontal cabling distribution areas. The QuickNet system meets the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel systems while maintaining compatibility with Ethernet. The high density modular design fits into rack mount fiber cassette enclosures to ensure efficient use of space and rapid network deployment.

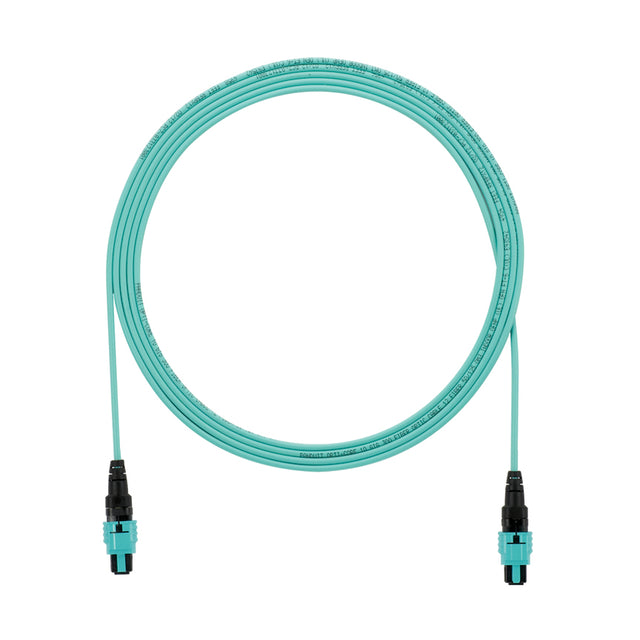

Panduit QuickNet PanMPO Fiber Cable Assembly, Interconnect OM4 Multi-Mode Plenum Round, 12 Fibers, 55.77 ft Length, Female MPO Connector, 50 um Core Dimension, 125 um Clad Dimension, 3.5/1.5 dB at 850/1300 nm Attenuation Rating, Aqua, -10 to 60 deg C
OM4 12 fiber interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female, Method B Std IL with no pulling eye, 17 meters.
Panduit - FZTRP7N7NBNM017 - Features
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
- Applications: Interconnect cables are small in diameter, extremely flexible and intended for shorter cable runs. These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability.
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
Specifications
Specifications
Panduit - FZTRP7N7NBNM017 - Specifications
| Connector Type | Mpo Female - Mpo Female |
|---|---|
| Fiber Type | Om4 |
| Length | 17 M | 55.77 Ft. |
| Number Of Fibers | 12 Fiber |
| Type | Trunk Cables |
| UNSPSC Code | 26121650 |
| Technical Information | Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 55.77 |
| Overall Length (m) | 17 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.118 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| UPC | 07498387306 |
