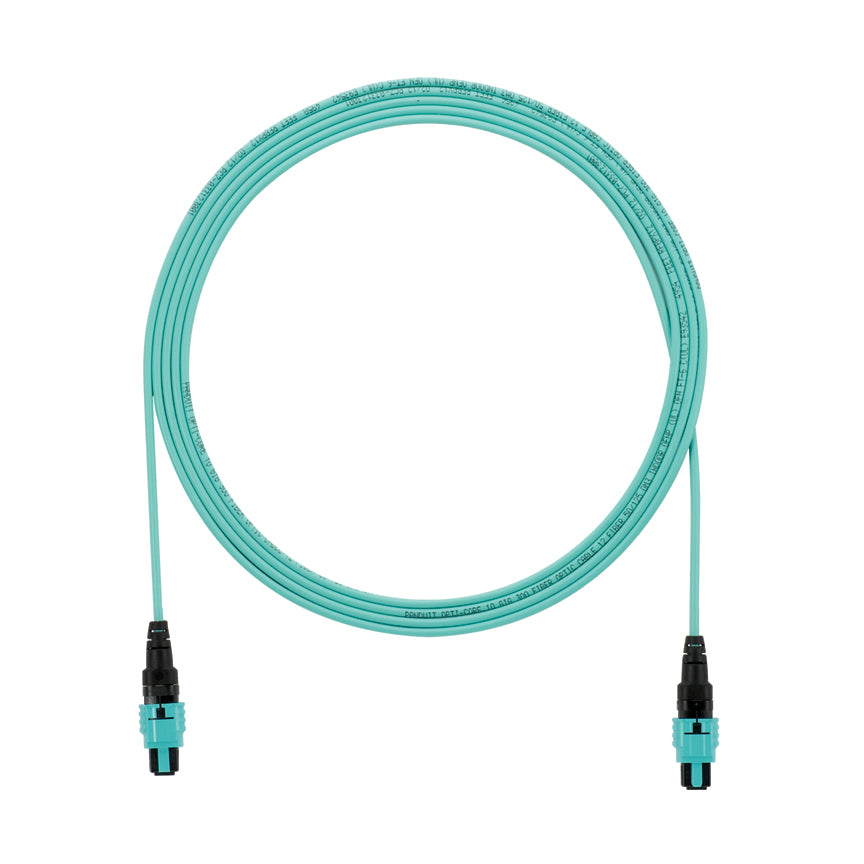

Panduit FZTRP7N7NYNM017 | Interconnect Cable Assembly
Description
Description
MPO interconnect round cable assemblies are pre-terminated 12-fiber cable assemblies that are used in high density network applications. These interconnect round cable assemblies are used with pre-terminated cassettes in main and horizontal cabling distribution areas. The QuickNet system meets the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel systems while maintaining compatibility with Ethernet. The high density modular design fits into rack mount fiber cassette enclosures to ensure efficient use of space and rapid network deployment.
Panduit QuickNet PanMPO Fiber Cable Assembly, Interconnect OM4 Multi-Mode Plenum Round, 12 Fibers, 55.77 ft Length, Female MPO Connector, 50 um Core Dimension, 125 um Clad Dimension, 3.5/1.5 dB at 850/1300 nm Attenuation Rating, Aqua, -10 to 60 deg C
OM4 12 fiber interconnect cable assembly plenum (OFNP) rated Pan MPO female to Pan MPO female, Method B Optimized IL, with no pulling eye, 17 meters.
Panduit - FZTRP7N7NYNM017 - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Applications: Intended for shorter cable runs, minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
Specifications
Specifications
Panduit - FZTRP7N7NYNM017 - Specifications
| Connector Type | Mpo Female - Mpo Female |
|---|---|
| Fiber Type | Om4 |
| Length | 17 M | 55.77 Ft. |
| Number Of Fibers | 12 Fiber |
| Type | Trunk Cables |
| UNSPSC Code | 26121650 |
| Technical Information | Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 55.77 |
| Overall Length (m) | 17 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Environment | Indoor |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Flammability Rating | Plenum |
| UPC | 07498386708 |
