Panduit FZTRP7NQSONF005 | QuickNet™ PanMPO™ Female to LC Push-Pull ...
Description
Description

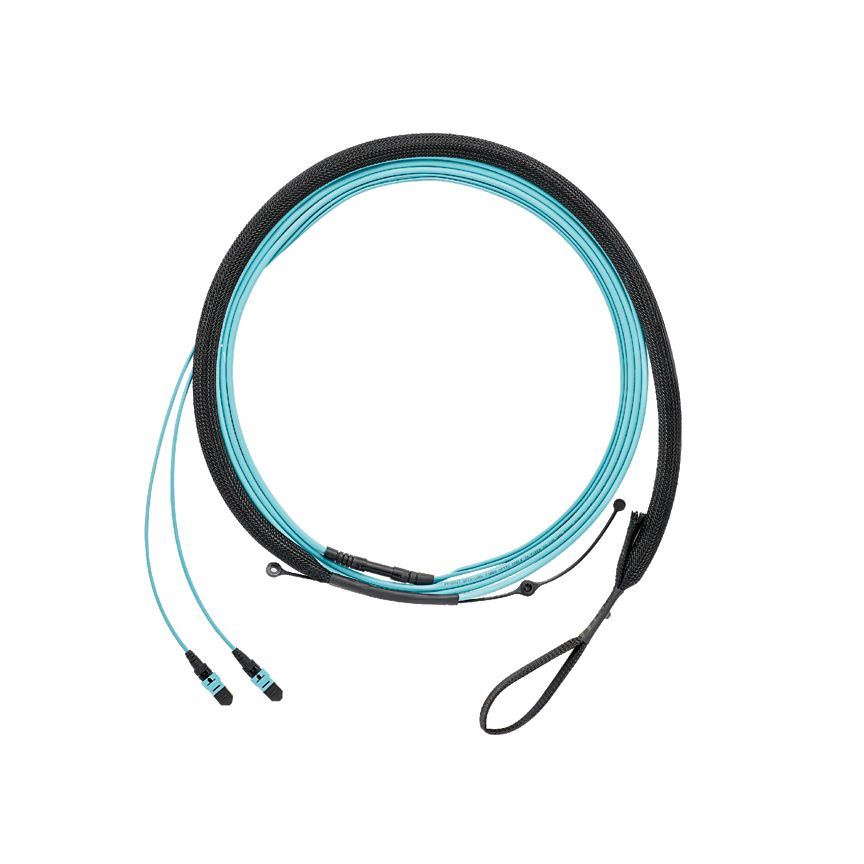

OM4, 12-fiber, harness cable assembly, plenum rated, Female PanMPO to LC duplex with 61cm (24 Inch) equal breakout, Optimized IL,5 feet
Easily upgrade your data centers with our PanMPO™ female to LC push-pull cable harness. Seamlessly connect your high-density MPO systems to standard LC equipment for flexible network expansions.
OM4, 12-fiber, harness cable assembly, plenum rated, Female PanMPO to LC duplex with 61cm (24 Inch) equal breakout, Optimized IL,5 feet
Panduit - FZTRP7NQSONF005 - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- Applications: Connect multiple MPO-based infrastructure components to LC-based components, such as LAN switches, servers, patch panels, and zone distribution areas.
Specifications
Specifications
Panduit - FZTRP7NQSONF005 - Specifications
| Connector Type | Mpo - Lc |
|---|---|
| Fiber Type | Om4 |
| Length | 5 Ft. | 1.52 M |
| Number Of Fibers | 12 Fiber |
| Type | Harnesses |
| UNSPSC Code | 26121650 |
| Technical Information | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-604-10 (FOCIS-10), TIA/EIA-568-C.1 and RoHS Compliant |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO™-12 Female |
| Connector 2 Type | LC Duplex Push-Pull |
| Sub Brand | QuickNet™ |
| Overall Length (ft.) | 5 |
| Overall Length (m) | 1.5 |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-604-10 (FOCIS-10), TIA/EIA-568-C.1 and RoHS Compliant |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Harness Cable Assembly |
| Application | Connect multiple MPO-based infrastructure components to LC-based components, such as LAN switches, servers, patch panels, and zone distribution areas. |
| Cable Color | Aqua |
| UPC | 07498308525 |
Panduit - FZTRP7NQSONF005 - Package Information
| UPC | 07498308525 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0273 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2728 |
Documents and Downloads
Documents and Downloads
- Panduit FZTRP7NQSONF005 Specification Sheet
- Panduit FZTRP7NQSONF005 Technical References
- Panduit FZTRP7NQSONF005 Specification Sheets
- Panduit FZTRP7NQSONF005 Application Guides
- Panduit FZTRP7NQSONF005 Selection Guides
- Panduit FZTRP7NQSONF005 Brochures
- Panduit FZTRP7NQSONF005 Application Guides
- Panduit FZTRP7NQSONF005 RoHS Statement
