Panduit FZTRP8NUJSNF032 | QuickNet Harness Cable Assembly
Description
Description
Our PanMPO male to LC uniboot dual staggered pair cable harness simplifies data center upgrades by connecting your MPO switches to LC equipment for scalable network growth and futureproofing design.

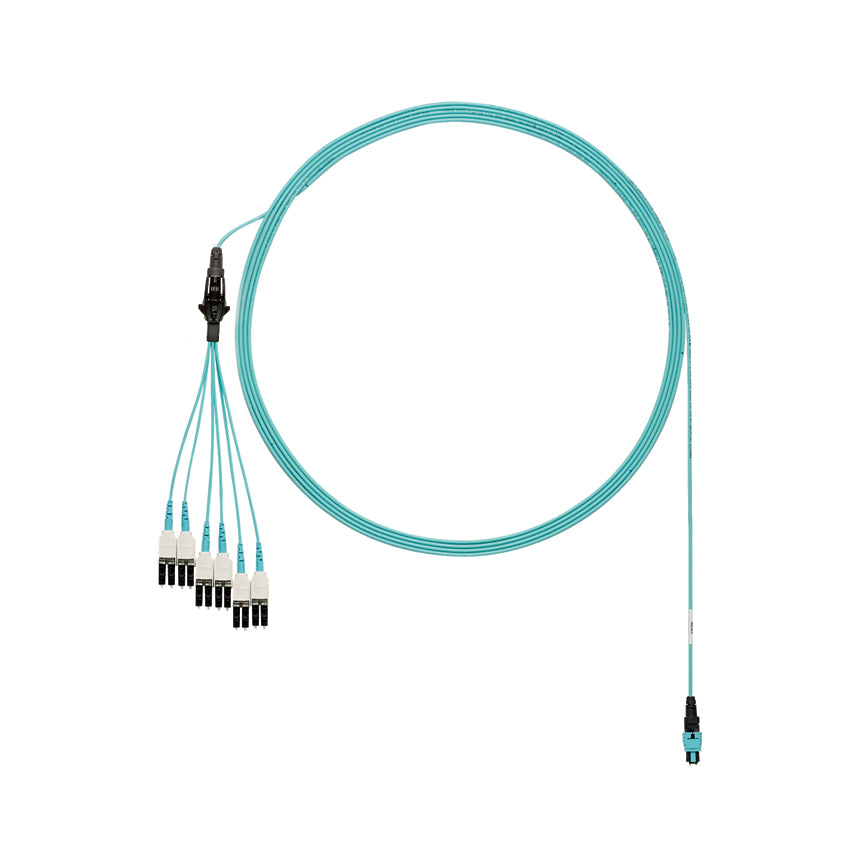

OM4 12-fiber round harness cable assembly, plenum (OFNP) rated, PanMPO Male to LC Uniboot, staggered pairs, 1 and 2 shortest, Std. IL. Aqua, 32 ft.
PanMPO round harness cable assemblies are pre-terminated 12-fiber cable assemblies. The unique design of the PanMPO connector allows for rapid gender change in the field, in support of standards compliant cable plant migration from 10G cassette based systems to 40G MPO connector based parallel optics cable plant. PanMPO harness assemblies meet the demands of 10G Ethernet, higher speed 40G Ethernet and high speed ANSI fiber channel systems, while maintaining compliance to the recommendations of TIA-568-C for both serial duplex and parallel optics wiring schemes. LC uniboot connectors reduce cable density on the switch by 40% and allow easy change of polarity.
Panduit QuickNet PanMPO Harness Cable Assembly, 12-Fiber OM4 Multi-Mode Round, PanMPO Male End A, LC Uniboot End B, 32 ft Length, Plenum (OFNP), Aqua
Panduit - FZTRP8NUJSNF032 - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FZTRP8NUJSNF032 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FZTRP8NUJSNF032 |
| Connector Type | Mpo Male - Lc |
| Fiber Type | Om4 |
| Length | 32 Ft. | 9.75 M |
| Number Of Fibers | 12 Fiber |
| Type | Harnesses |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO-12 Male |
| Connector 2 Type | LC Duplex Uniboot |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 32 |
| Overall Length (m) | 9.8 |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-604-10 (FOCIS-10), TIA/EIA-568-C.1 and RoHS Compliant |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Harness Cable Assembly |
| Application | Connect multiple MPO-based infrastructure components to LC-based components, such as LAN switches, servers, patch panels, and zone distribution areas. |
| Cable Color | Aqua |
| UPC | 07498376838 |
Panduit - FZTRP8NUJSNF032 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
