Panduit FZTYP5EL2SAF040 | Trunk Cable Assembly | UPC - 07498372438
Regular price
$1,054.13
Unit price
Brand: Panduit
|
SKU:
684670
Regular price
$1,054.13
Unit price
Description
Description

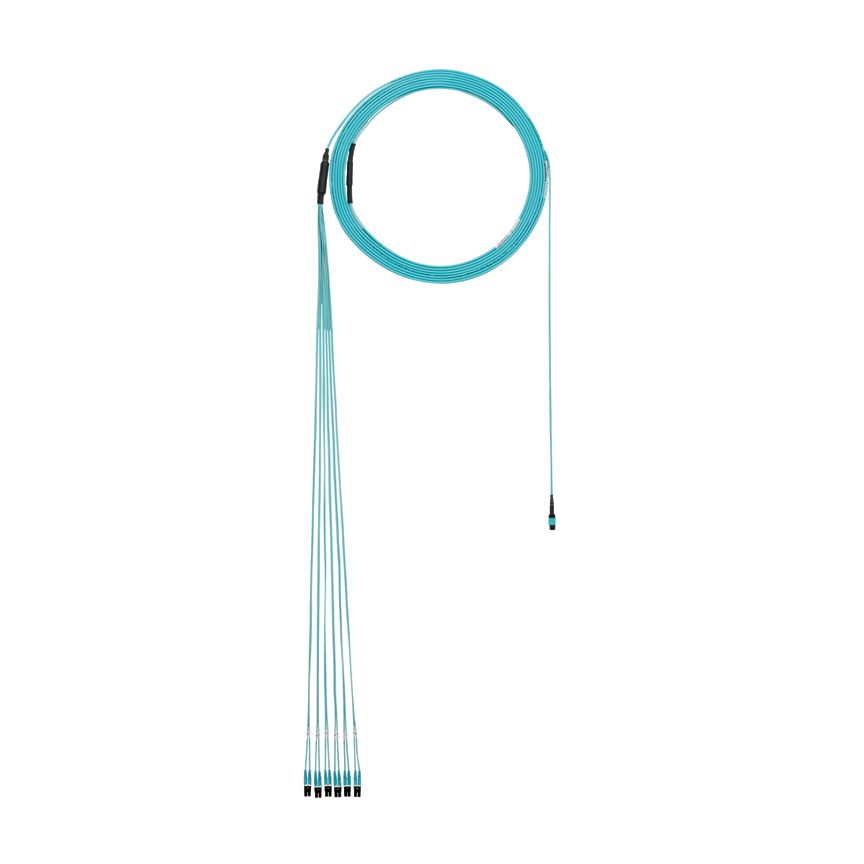

OM4 12-fiber indoor small diameter trunk cable assembly, plenum (OFNP) rated, MPO female to LC duplex, Std. IL., with a pulling eye on end A.
Panduit FZTYP5EL2SAF040 Key Specs
| Note | Contact Customer Service for other lengths available |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | MPO Female |
| Connector 2 Type | LC Duplex |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Sub Brand | QuickNet |
| Tensile Strength (N) | 440 |
| Tensile Strength (kg) | 44.87 |
| Tensile Strength (lb) | 98.92 |
| Environment | Indoor |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds: ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1, GR-409-CORE, ICEA S-83-596 RoHS Complaint |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Trunk Cable Assembly |
| Overall Length (ft.) | 40 |
| Overall Length (m) | 12.19 |
| Application | Allows system designers to tailor configuration, reach and breakout construction to application requirements; to minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation costs. Small diameter trunk cable assemblies use 30 – 40% less space which is ideal for high cable density applications. |
| Cable Color | Aqua |
| Fiber Diameter (µm) | 50 |
Panduit FZTYP5EL2SAF040 Data Sheets
| Part Drawings | Small Diameter Trunk Cable Assemblies: 12F178BM-DC | Download and View |
| Technical References | Transmission Speeds and their Max. Channel Length: FBTR122--WW-ENG | Download and View |
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
| Specification Sheets | Arneses con Cable de Diámetro Reducido para Troncales QuickNet PanMPO y MPO: FBSP94--WW-SPA | Download and View |
| Specification Sheets | QuickNet Small Diameter Trunk Cable Assemblies OFNP and LSZH | Download and View |
| Specification Sheets | QuickNet PanMPO and MPO Small Diameter Trunk Cable Assemblies | Download and View |
| Application Guides | Deploying Fiber Cabling in the Data Center | Download and View |
