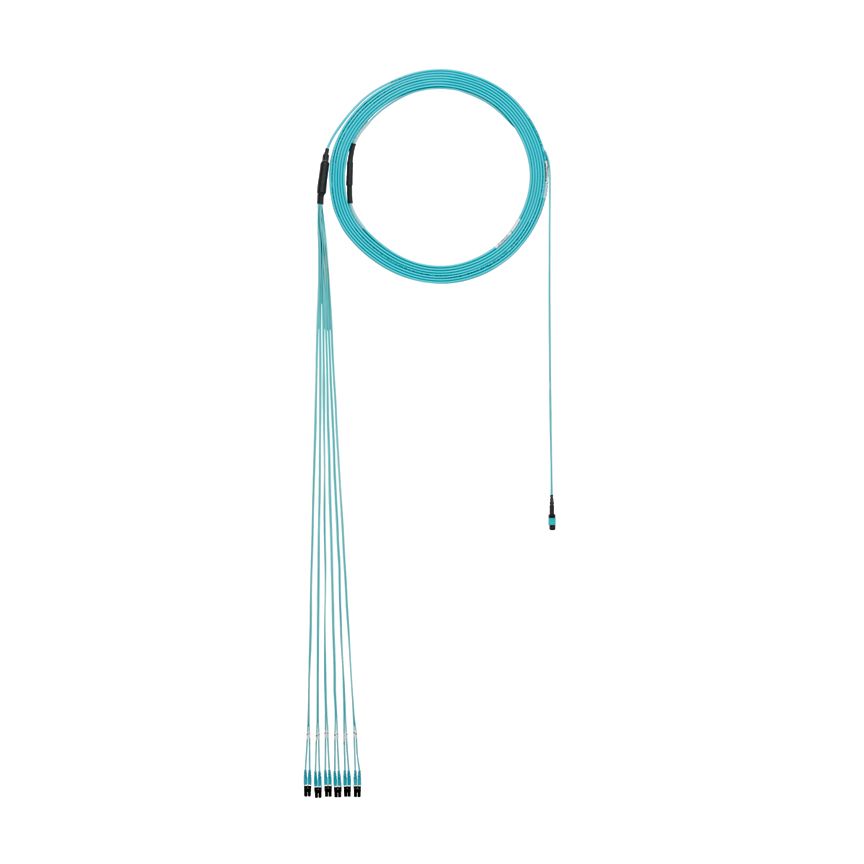

Panduit FZTYP5EL2SAF220 | QuickNet Trunk Cable Assembly
Description
Description
Our indoor MPO female to LC duplex trunk cable assembly, with its small diameter design will save data center space and make installation simple. It's sturdy for long-distance connections.
OM4 12-fiber indoor small diameter trunk cable assembly, plenum (OFNP) rated, MPO female to LC duplex, Std. IL., with a pulling eye on end A, 220.00 ft.
Small Dia trunk cable assemblies allow for rapid deployment of high density permanent links in a single assembly for data center applications requiring quick infrastructure deployment, such as main, horizontal and zone distribution areas. These trunk cable assemblies optimize cable routing requirements to ensure efficient use of pathway space and significantly reduce installation time and cost. QuickNet small Dia trunk cable assemblies are built with modular MPO connectivity and provide compatibility, flexibility and system performance in all permanent link applications. All small Dia trunk cable assemblies are factory terminated and tested to deliver verified optical performance and reliability for improved network integrity. 10Gig versions provide 10 Gbps network performance up to 300 m for OM3 and up to 550 m for OM4 per IEEE 802.3ae 10 GbE standard while maintaining compatibility with legacy systems.
Panduit QuickNet Trunk Cable Assembly, 12-Fiber Duplex OM4 Multi-Mode Small Diameter, MPO Female End A, LC Duplex End B, 220 ft Length, Plenum (OFNP), Aqua
Panduit - FZTYP5EL2SAF220 - Features
- Without pulling eye
Specifications
Specifications
Panduit - FZTYP5EL2SAF220 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FZTYP5EL2SAF220 |
| Connector Type | Mpo Female - Lc |
| Fiber Type | Om4 |
| Length | 220 Ft. | 67.06 M |
| Number Of Fibers | 12 Fiber |
| Type | Trunk Cables |
| UNSPSC Code | 26121650 |
| Note | Contact Customer Service for other lengths available |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 2 Type | LC Duplex |
| Sub Brand | QuickNet |
| Flammability Rating | Plenum (OFNP) |
| Fiber Diameter (µm) | 50 |
| Overall Length (ft.) | 220 |
| Overall Length (m) | 67 |
| Cable Color | Aqua |
| Product Type | Trunk Cable Assembly |
| Standards Met | Meets or exceeds: ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1, GR-409-CORE, ICEA S-83-596 RoHS Compliant |
| Application | Allows system designers to tailor configuration, reach and breakout construction to application requirements; to minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation costs. Small diameter trunk cable assemblies use 30 – 40% less space which is ideal for high cable density applications. |
| UPC | 07498372515 |
Panduit - FZTYP5EL2SAF220 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
Documents and Downloads
Documents and Downloads
- Panduit FZTYP5EL2SAF220 Specification Sheet
- Panduit FZTYP5EL2SAF220 Part Drawings
- Panduit FZTYP5EL2SAF220 Technical References
- Panduit FZTYP5EL2SAF220 Application Guides
- Panduit FZTYP5EL2SAF220 Specification Sheets
- Panduit FZTYP5EL2SAF220 Specification Sheets
- Panduit FZTYP5EL2SAF220 Specification Sheets
- Panduit FZTYP5EL2SAF220 Application Guides
- Panduit FZTYP5EL2SAF220 RoHS Statement
