Brand: Panduit
|
SKU:
694877
Panduit FZTYP7EL2SAM020 | Trunk Cable Assembly | UPC - 07498385428
Regular price
$1,201.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FZTYP7EL2SAM020 | Trunk Cable Assembly | UPC - 07498385428
Regular price
$1,201.69
Unit price
Description
Description

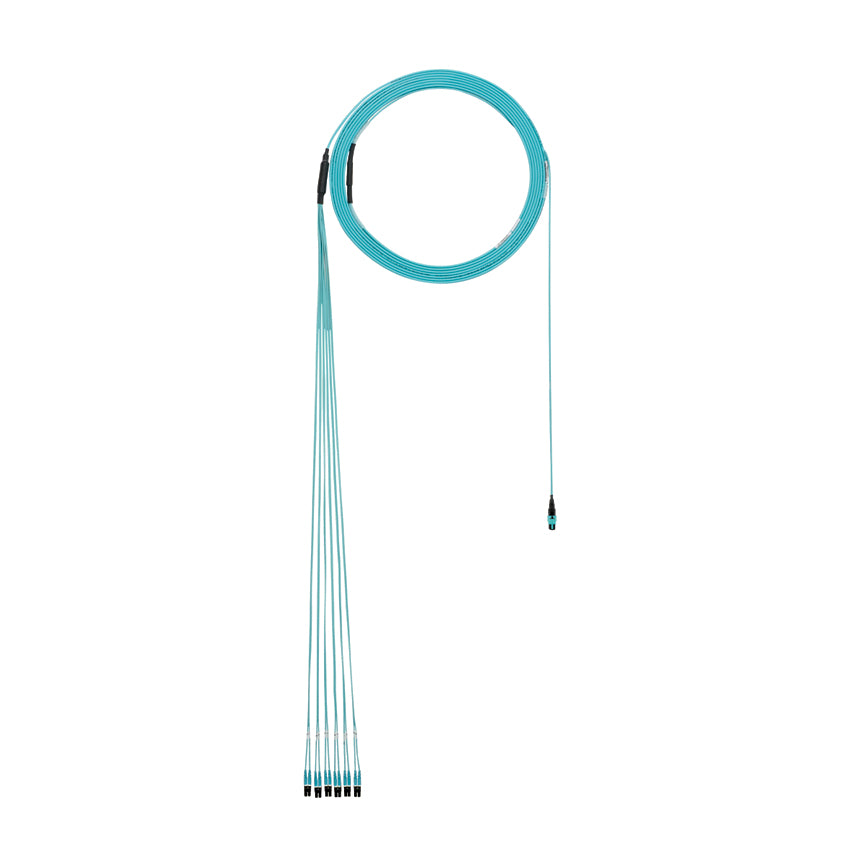

OM4 12-fiber indoor small diameter trunk cable assembly, plenum (OFNP) rated, PanMPO female to LC duplex, Std IL; with a pulling eye end A.
Panduit Trunk Cable Assembly Key Specs
| Note | Contact Customer Service for other lengths available |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | LC Duplex |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 30 |
| Sub Brand | QuickNet |
| Tensile Strength (N) | 440 |
| Tensile Strength (kg) | 44.87 |
| Tensile Strength (lb) | 98.92 |
| Environment | Indoor |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds: ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596, RoHS Complaint |
Panduit Trunk Cable Assembly Data Sheets
| Installation Documents | PanMPO Connectors: FS041--REVA--ENG | Download and View |
| Flyers | PanMPO Connectors: 10Gig to 40Gig Ethernet Migration: FBFL02--SA-ENG | Download and View |
