Panduit FZTYP7EL2SAM100 | Trunk Cable Assembly | UPC - 07498385441
Description
Description
PanMPO trunk assemblies are pre-terminated 12-fiber and 24-fiber cable assemblies. The unique design of the PanMPO connector allows for rapid gender and polarity change in the field, in support of standards compliant cable plant migration from 10G cassette based systems to 40G MPO connector based parallel optics cable plant. These trunk cable assemblies optimize cable routing requirements to ensure efficient use of pathway space and significantly reduce installation time and cost. All small Dia trunk cable assemblies are factory terminated and tested to deliver verified optical performance and reliability for improved network integrity. 10Gig versions provide 10 Gbps network performance up to 300 m for OM3 and up to 550 m for OM4 per IEEE 802.3ae 10 GbE standard while maintaining compatibility with legacy systems.

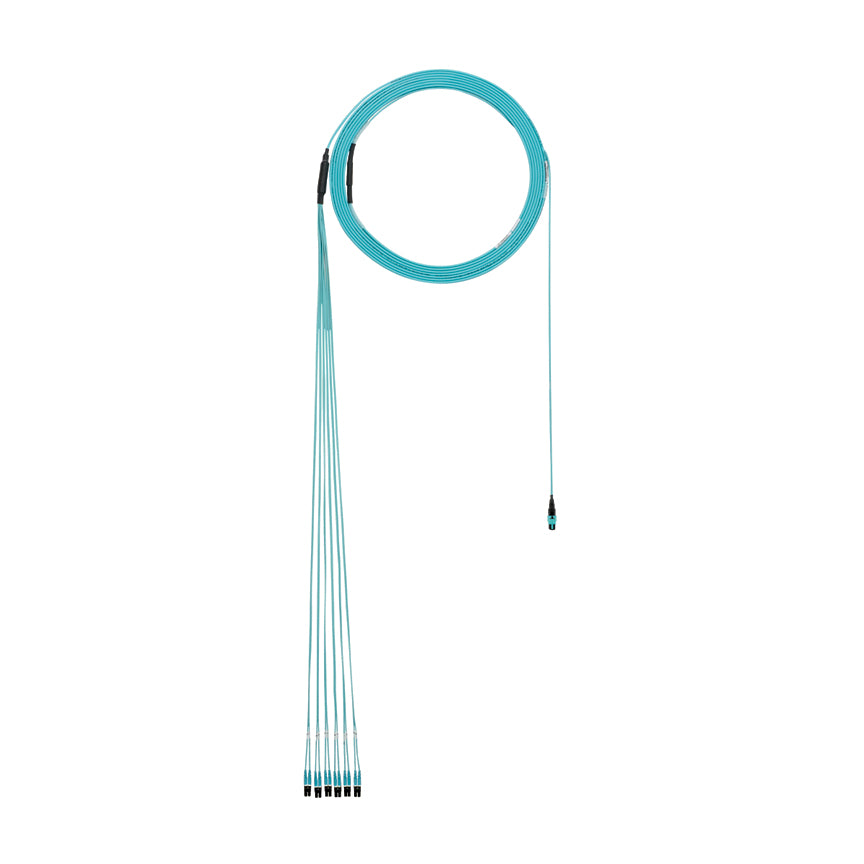

Panduit QuickNet PanMPO Trunk Cable Assembly, 12-Fiber Small Diameter OM4 Multi-Mode, PanMPO Female End A, LC Duplex End B, 328.08 ft Length, Plenum (OFNP), Aqua
Features + Benefits
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Panduit FZTYP7EL2SAM100 Key Specs
| Note | Contact Customer Service for other lengths available |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | LC Duplex |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 30 |
| Sub Brand | QuickNet |
| Tensile Strength (N) | 440 |
| Tensile Strength (kg) | 44.87 |
| Tensile Strength (lb) | 98.92 |
| Environment | Indoor |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds: ISO/IEC 11801, TIA/EIA-568-C.3,TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1,GR-409-CORE, ICEA S-83-596,RoHS Complaint |
Panduit FZTYP7EL2SAM100 Data Sheets
| Part Drawings | PanMPO to PanMPO Interconnect Cable Assembly: 10F093BF-DC | Download and View |
| Installation Documents | PanMPO Polarity Changeover: FBFS041--REVA--ENG | Download and View |
| Flyers | PanMPO Connectors: 10Gig to 40Gig Ethernet Migration: FBFL02--SA-ENG | Download and View |
