Panduit FZURPENENXNF010 | Interconnect Cable Assembly | UPC - 61305...
Description
Description
QuickNet 24-fiber interconnect assemblies allow for rapid deployment of high density permanent links for aggregation of 10G Ethernet and higher speed fiber channel cabling. These cables also facilitate direct attach or structured cabling capability for 100GBASE-SR10 applications and CXP or MXP optics requiring 24-fiber MPO interconnection at the transceiver media device interface. QuickNet pre-terminated trunk cable assemblies optimize cable routing requirements to ensure efficient use of pathway space and significantly reduce installation time and cost.

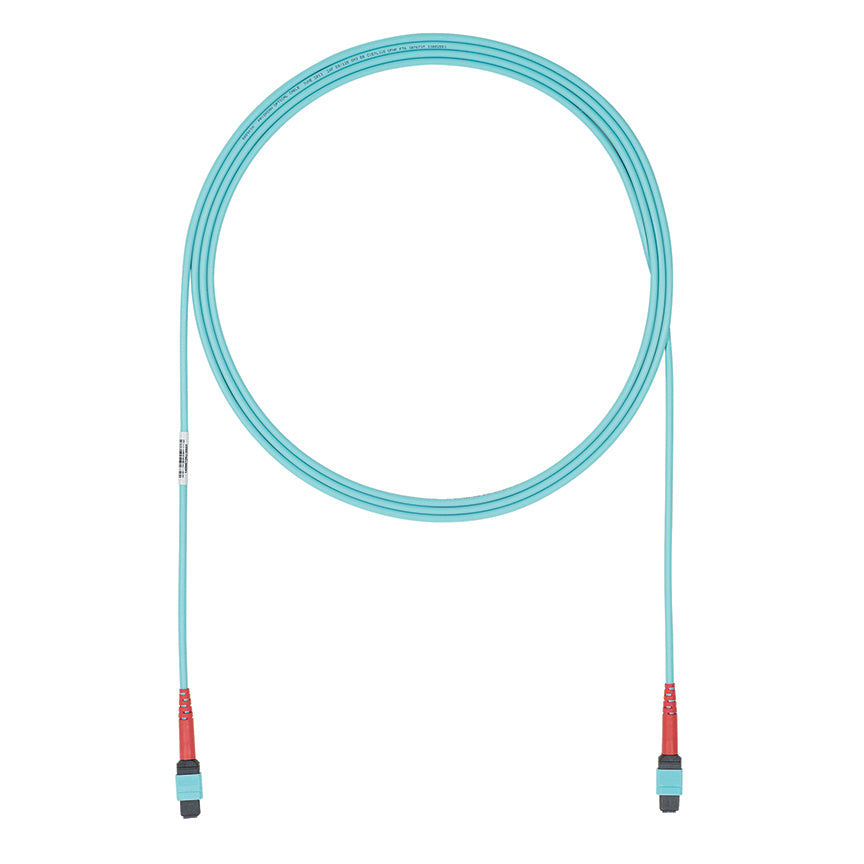

Panduit QuickNet Fiber Optic Patch Cord, OM4 Multi-Mode Plenum, 24 Fibers, 10 ft Length, 24F MPO Female Connector, 50 um Core, 125 um Clad, 3/1.5 dB at 850/1300 nm Attenuation, Aqua Jacket, Black/Red, 32 to 158 deg F
Features + Benefits
Panduit FZURPENENXNF010 Key Specs
| Fiber Type | OM4 |
| Number of Fibers | 24 |
| Connector 1 Type | MPO Female |
| Connector 2 Type | MPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 10 |
| Overall Length (m) | 3.04 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.1417 |
| Outer Diameter (mm) | 3.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
Panduit FZURPENENXNF010 Data Sheets
| Part Drawings | Die-less Crimp Tool - 00084SLE_DC/00 | Download and View |
| Manuals | Instruction Manual CT-2980 Series | Download and View |
| Product Bulletins | BlackFin Installation Tools: ELCB20 | Download and View |
