Brand: Panduit
|
SKU:
G.5X4LG6
Panduit G.5X4LG6 | Panduct G.5X4Lg6 Base Wiring Duct
Regular price
$88.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit G.5X4LG6 | Panduct G.5X4Lg6 Base Wiring Duct
Regular price
$88.77
Unit price
Description
Description
Panduit G.5X4LG6 | Panduct G.5X4Lg6 Base Wiring Duct
Panduit G.5X4LG6 | WIRE DUCT | SLOTTED WIRING DUCT

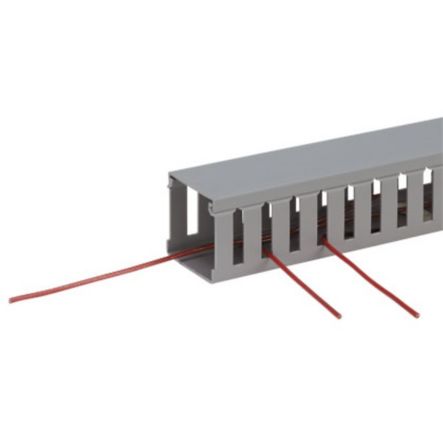

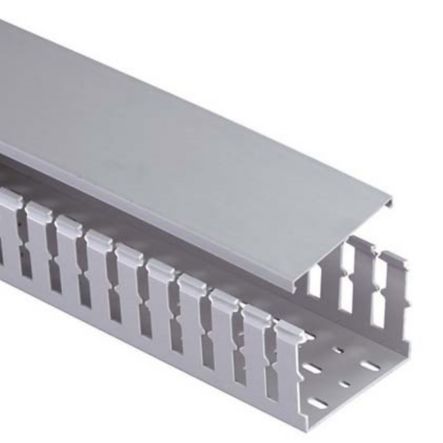

The G.5X4LG6 Panduct Lead-Free PVC Wide Slot Wiring Duct features a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 0.5" x 4.0" (12.7 mm x 101.6 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
Specifications
Specifications
Panduit - G.5X4LG6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - G.5X4LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | G.5X4LG6 |
| Item Description | Panduct G.5X4Lg6 Base Wiring Duct |
| Application | Wide Slot Wiring Duct for use in Control Panel and Machine Builder applications |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C.5LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | UL Recognized, CSA Compliant, CE Approved |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 4.1 |
| Overall Height (mm) | 104.1 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 0.69 |
| Overall Width (mm) | 17.5 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
Panduit - G.5X4LG6 - Package Information
| UPC | 07498378046 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.1296 |
| Standard Ctn. Quantity | 60 |
| Standard Ctn. Volume (cf) | 1.2963 |
