Brand: Panduit
|
SKU:
PAN-G.75X1.5WH6-A
Panduit G.75X1.5WH6-A | Base Wiring Duct | UPC - 07498354556
Regular price
$56.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit G.75X1.5WH6-A | Base Wiring Duct | UPC - 07498354556
Regular price
$56.14
Unit price
Brand: Panduit
|
SKU:
PAN-G.75X1.5WH6-A
Regular price
$56.14
Unit price
Shipping calculated at checkout.
Description
Description

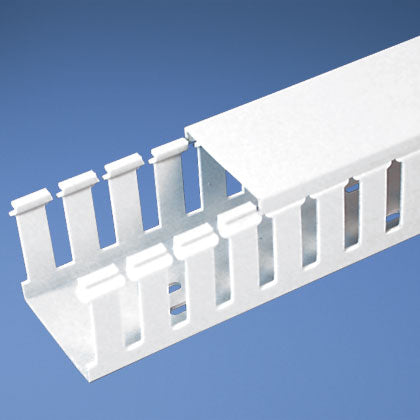

Panduit Panduct Slotted Wall Wiring Duct, Type G, 3/4 in Width, 6 ft Length, 0.07 in Thickness, Wide Slot, 0.31 in Slot, Hole Mounting, Yes Adhesive Backed, Lead-Free PVC, White
Features + Benefits
- Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower scorelines allows easy finger and sidewall section removals
Panduit G.75X1.5WH6-A | Base Wiring Duct | UPC - 07498354556 Key Specs
| Application | (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation |
| Product Type | Base Wiring Duct |
| Color | White |
| Cover Part Number | C.75WH6 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes with Adhesive |
| Measurement System | Metric |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 1.57 |
| Overall Height (mm) | 39.9 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 0.92 |
| Overall Width (mm) | 23.4 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
Panduit G.75X1.5WH6-A | Base Wiring Duct | UPC - 07498354556 Data Sheets
| Part Drawings | Wide Slotted Duct-Type G .75X1.5 | Download and View |
Panduit G.75X1.5WH6-A | Base Wiring Duct | UPC - 07498354556 Environmental Information
| Panduit's RoHS Statement | Download and View |
