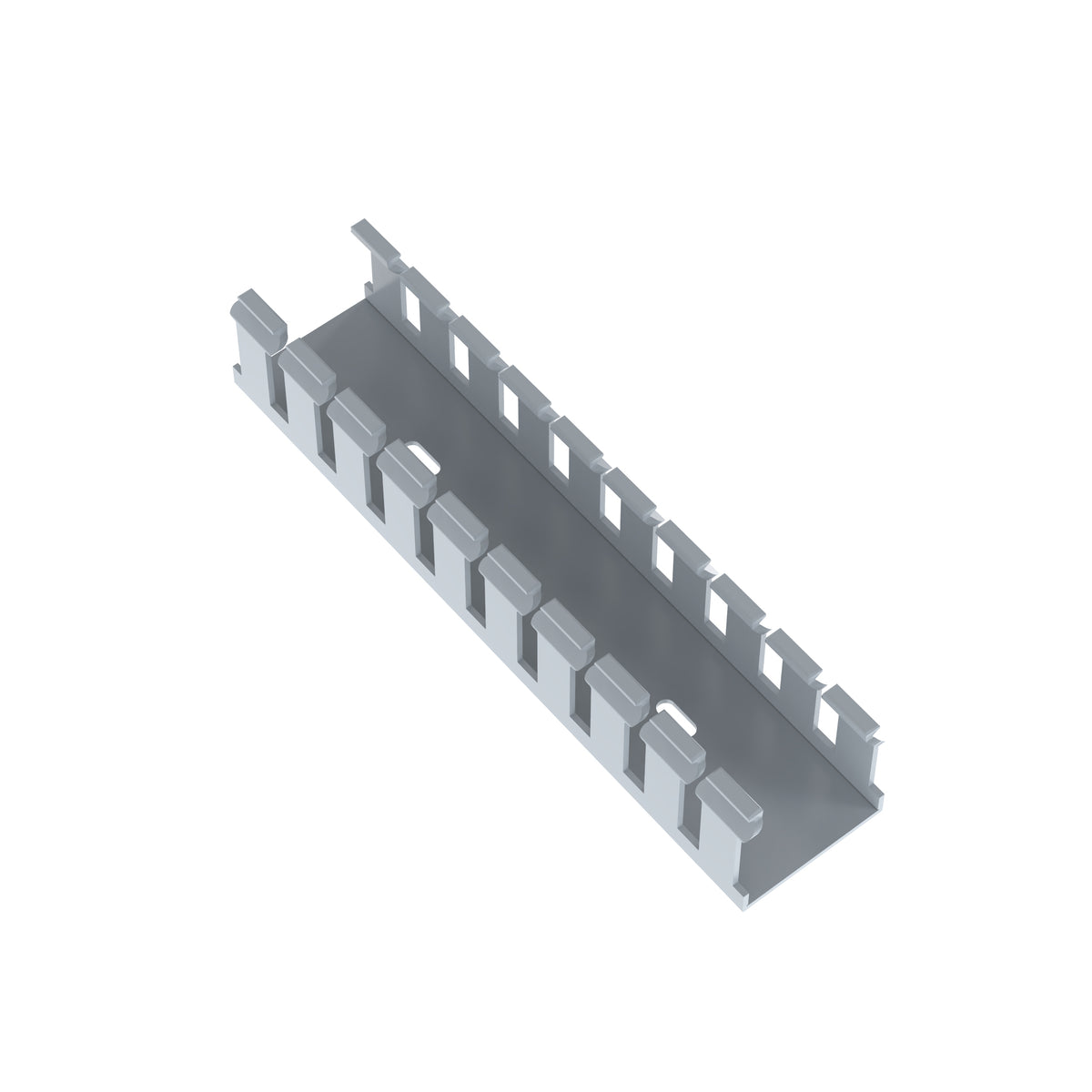

Panduit G1.5X1.5LG6 | Panduct Base Wiring Duct
Description
Description
Our Type G wide slot wiring duct securely accommodates various wire bundle sizes with its rigid design, enabling flexible cable organization in control panels and electrical enclosures.
The G1.5X1.5LG6 Panduct Lead-Free PVCWide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use tempera ture up to 122F (50C). Mounting holes provided. Lead-free PVC. 1.62" x 1.75" (41.1 mm x 44.4 mm) and 6’ (1.8 m) long. Cover sold separately. Color Light Gray. 6 per package.
Panduit Panduct Slotted Wall Wiring Duct, Type G, 1-1/2 in Width, 6 ft Length, 2 mil Thickness, Wide Slot, 0.31 in Slot, Hole Mounting, Lead-Free PVC, Light Gray
Panduit - G1.5X1.5LG6 - Features
- Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower scorelines allows easy finger and sidewall section removals
- Reducing scrap and labor costs by protecting the surface during storage, handling and installation
- Specifications
- Made of lead-free PVC
- UL Recognized continuous use temperature: 122 F (50C)
- UL94 Flammability Rating of V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Provided with mounting holes
Specifications
Specifications
Panduit - G1.5X1.5LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | G1.5X1.5LG6 |
| Components | Slotted Duct Standard |
| Fiber Duct H X W | 1.5" X 1.5" |
| Finish | Black |
| Material | Pvc |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Duct Dimensions (In.) | 1.75W x 1.62H |
| Product Type | Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Color | Light Gray |
| Cover Part Number | C1.5LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.5 |
| Overall Height (In.) | 1.62 |
| Overall Height (mm) | 41.1 |
| Slot Width (In.) | 0.31 |
| UPC | 07498354578 |
Panduit - G1.5X1.5LG6 - Videos
| Panduit G1.5X1.5LG6 Video 1 | Click to View |
|---|---|
| Panduit G1.5X1.5LG6 Video 2 | Click to View |
