Panduit G1.5X2LG6-A | Panduct Base Wiring Duct
Regular price
$66.58
Unit price
Brand: Panduit
|
SKU:
378371
Regular price
$66.58
Unit price
Description
Description

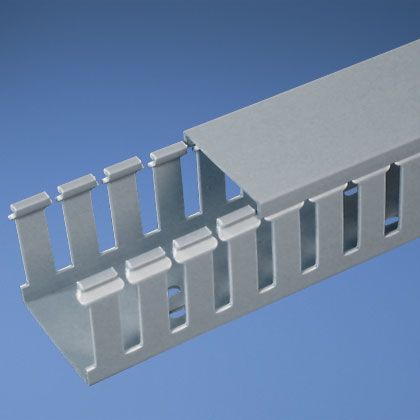

Panduit G1.5X2LG6-A | Panduct Base Wiring Duct
Our Type G wide slot wiring duct securely accommodates various wire bundle sizes with its rigid design, enabling flexible cable organization in control panels and electrical enclosures.
Panduit Panduct Slotted Wall Wiring Duct, Type G, 1-1/2 in Width, 6 ft Length, 2 mil Thickness, Wide Slot, 0.31 in Slot, Hole Mounting, Yes Adhesive Backed, Lead-Free PVC, Light Gray
Panduit - G1.5X2LG6-A - Features
- Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower scorelines allows easy finger and sidewall section removals
- Reducing scrap and labor costs by protecting the surface during storage, handling and installation
Specifications
Specifications
Panduit - G1.5X2LG6-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | G1.5X2LG6-A |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation |
| Duct Dimensions (In.) | 1.75W x 2.12H |
| Product Type | Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Color | Light Gray |
| Cover Part Number | C1.5LG6 |
| Flammability Rating | UL94 V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes with Adhesive |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.5 |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| UPC | 07498354681 |
Panduit - G1.5X2LG6-A - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - G1.5X2LG6-A - Videos
| Panduit G1.5X2LG6-A Video 1 | Click to View |
|---|
