Panduit G1.5X3LG6 | Panduct G1.5X3LG6 Base Wiring Duct
Description
Description

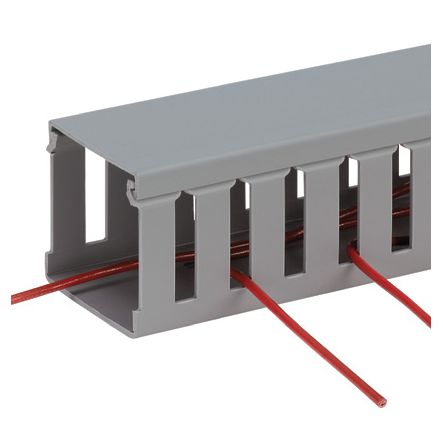

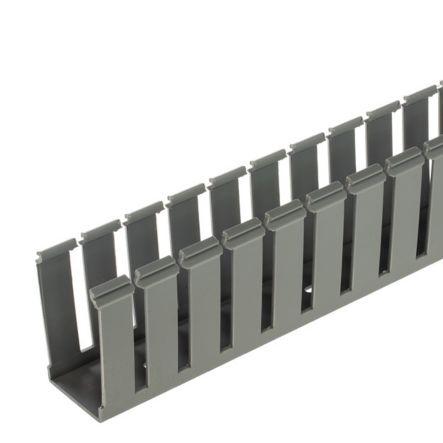

The G1.5X3LG6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 1.5" x 3.0" (38.1 mm x 76.2 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
Panduit G1.5X3LG6 - DUCT - 1.5" SLOTTED DUCT LT GRAY
Specifications
Specifications
Panduit - G1.5X3LG6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - G1.5X3LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | G1.5X3LG6 |
| Item Description | Panduct G1.5X3LG6 Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C1.5LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 3.12 |
| Overall Height (mm) | 79.2 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.5 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
| Part Features | Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. |
Panduit - G1.5X3LG6 - Package Information
| UPC | 07498354580 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.1489 |
| Standard Ctn. Quantity | 120 |
| Standard Ctn. Volume (cf) | 2.9786 |
Panduit - G1.5X3LG6 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
