Brand: Panduit
|
SKU:
229033

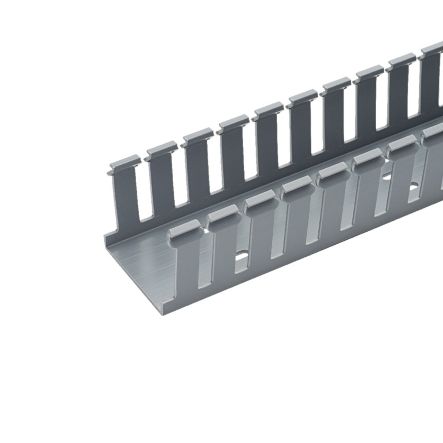

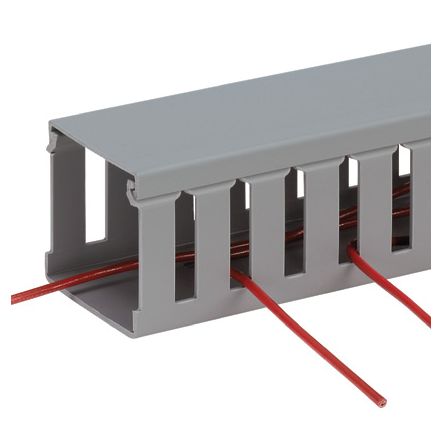

Panduit G1X1LG6 Slotted Duct, PVC,1";X1";X6’;,Light Gray
Regular price
$32.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit G1X1LG6 Slotted Duct, PVC,1";X1";X6’;,Light Gray
Regular price
$32.63
Unit price
Description
Description
Panduit G1X1LG6 | Panduct G1X1LG6 Base Wiring Duct
The G1X1LG6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 1.0" x 1.0" (25.4 mm x 25.4 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
Panduit - G1X1LG6 - Features
- Specifications
- Made of lead-free PVC
- UL Recognized continuous use temperature: 122 F (50C)
- UL94 Flammability Rating of V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Provided with mounting holes
Specifications
Specifications
Panduit - G1X1LG6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - G1X1LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | G1X1LG6 |
| Item Description | Panduct G1X1LG6 Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C1LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 1.12 |
| Overall Height (mm) | 28.4 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 32 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
| Part Features | Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. |
Panduit - G1X1LG6 - Package Information
| UPC | 07498363911 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0461 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 0.9214 |
Panduit - G1X1LG6 - Videos
| Video 1 | Click to View |
|---|
