Panduit G2.5X3WH6 | Base Wiring Duct | UPC - 07498363936
Regular price
$78.33
Unit price
Description
Description

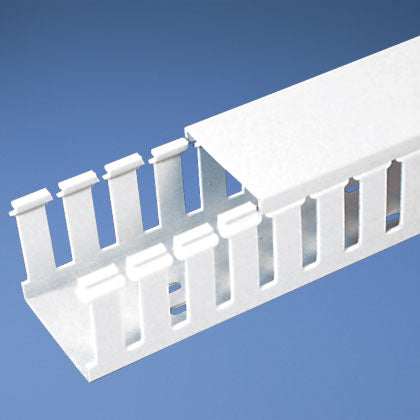

Panduit Panduct Slotted Wall Wiring Duct, Type G, 2-1/2 in Width, 6 ft Length, 2 mil Thickness, Wide Slot, 0.31 in Slot, Hole Mounting, Lead-Free PVC, White
Features + Benefits
- Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower scorelines allows easy finger and sidewall section removals
- Reducing scrap and labor costs by protecting the surface during storage, handling and installation
Panduit G2.5X3WH6 Key Specs
| Application | (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation |
| Product Type | Base Wiring Duct |
| Color | White |
| Cover Part Number | C2.5WH6 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 3.12 |
| Overall Height (mm) | 79.2 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.75 |
| Overall Width (mm) | 69.8 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
Panduit G2.5X3WH6 Data Sheets
| Part Drawings | HSTT Thin Wall Heat Shrink: GB0239KH | Download and View |
| MSDS | MSDS- Heat Shrinkable Tubing | Download and View |
| Selection Guides | Heat Shrink Selection Guide | Download and View |
