Panduit G2X2LG6EMI | Base Wiring Duct | UPC - 07498339256
Description
Description
PanelMax shielded wiring duct and noise shield route, separate and shield sensitive wiring from noise emission. This allows pathways to be placed in closer proximity, saving valuable space within industrial control panels. The shielding provides up to 20 dB reduction in noise (EMI/RFI) or 90% noise voltage reduction (NVR), which is equivalent to 6 in of air spacing between sensitive and noise emitting wiring. Several wire routing and segregation configurations are possible with the innovative shielded wiring duct and noise shield, delivering greater design flexibility to satisfy a wide range of applications. These products are part of the broad range of reliable product systems offered by the Panduit industrial automation solution. These product systems aid in reducing design and assembly time, create valuable panel space savings and provide easier installation and maintenance.

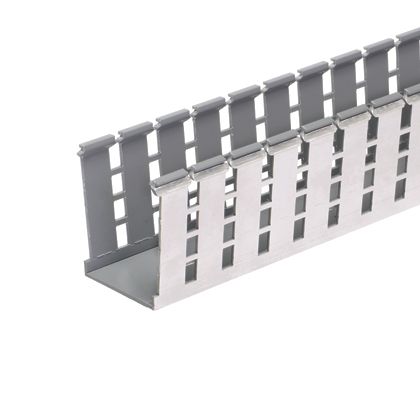

Panduit Panduct PanelMax Slotted Wall Wiring Duct, Type G Shielded, 2 in W, 2 in D, 6 ft Length, Wide Slotted Slot, 0.31 in Slot, Hole Mount, Aluminum/PVC, Light Gray
Features + Benefits
- Metric halogen-free wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower score lines allows easy finger and sidewall section removals
- The halogen free material is environmentally safe and will not release corrosive or toxic gases
- Base and cover packaged together
Panduit G2X2LG6EMI Key Specs
| Application | (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C2LG6 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC/Aluminum |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Shielded Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 3.12 |
| Overall Height (mm) | 79.2 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | PanelMax |
| Part Features | Continuous foil shield covers and shields outer duct surfaces providing EMI/RFI noise reduction between sensitive and noisy wiring. Slotted sidewalls with horizontal bridges provides wire management capability and noise reductin in the full height of the duct. Upper and lower score lines for removal to ease installation and wire routing. Complements other noise mititgation efforts for more robust control design. |
Panduit G2X2LG6EMI Data Sheets
| Part Drawings | Shielded Wiring Duct | Download and View |
| Product Bulletins | Shielded Wiring Duct and Noise Shield - WDCB26--SA-ENG | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - G2X2LG6EMI Product Page | Download and View |
| Installation Documents | Installation Instructions/Best Practices - PanelMax shielded Wiring duct-EP001 | Download and View |
| Reference Architecture | Control Panel Reference Design: PCD0004 | Download and View |
| Selection Guides | Wiring Duct Product Selection Guide | Download and View |
