Panduit G2X3LG6EMI | Base Wiring Duct | UPC - 07498339257
Description
Description
PanelMax shielded wiring duct and noise shield route, separate and shield sensitive wiring from noise emission. This allows pathways to be placed in closer proximity, saving valuable space within industrial control panels. The shielding provides up to 20 dB reduction in noise (EMI/RFI) or 90% noise voltage reduction (NVR), which is equivalent to 6 in of air spacing between sensitive and noise emitting wiring. Several wire routing and segregation configurations are possible with the innovative shielded wiring duct and noise shield, delivering greater design flexibility to satisfy a wide range of applications. These products are part of the broad range of reliable product systems offered by the Panduit industrial automation solution. These product systems aid in reducing design and assembly time, create valuable panel space savings and provide easier installation and maintenance.

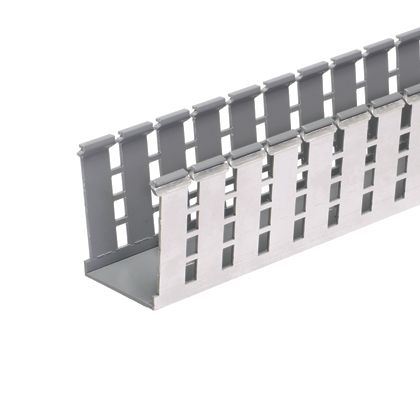

Panduit Panduct PanelMax Slotted Wall Wiring Duct, Type G Shielded, 2 in W, 3 in D, 6 ft Length, Wide Slotted Slot, 0.31 in Slot, Hole Mount, Aluminum/PVC, Light Gray
Features + Benefits
- Metric halogen-free wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower score lines allows easy finger and sidewall section removals
- Provided with DIN 43 659 mounting holes
- Metric sizing and finger progression
- Duct and cover packaged together in two meter lengths
- High continuous use temperature
- The base sidewall is even with cover for superior aesthetics and greater wiring capacity when compared to non-flush cover wiring duct
- Base and finger score lines
Panduit G2X3LG6EMI Key Specs
| Application | (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C2LG6 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC/Aluminum |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Shielded Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 3.12 |
| Overall Height (mm) | 79.2 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | PanelMax |
| Part Features | Continuous foil shield covers and shields outer duct surfaces providing EMI/RFI noise reduction between sensitive and noisy wiring. Slotted sidewalls with horizontal bridges provides wire management capability and noise reductin in the full height of the duct. Upper and lower score lines for removal to ease installation and wire routing. Complements other noise mititgation efforts for more robust control design. |
Panduit G2X3LG6EMI Data Sheets
| Part Drawings | Shieled Wiring Duct | Download and View |
| Product Bulletins | Shielded Wiring Duct and Noise Shield - WDCB26--SA-ENG | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - G2X2LG6EMI Product Page | Download and View |
| Installation Documents | Installation Instructions/Best Practices - PanelMax shielded Wiring duct-EP001 | Download and View |
| Selection Guides | Wiring Duct Product Selection Guide | Download and View |
| Technical References | Chemical Resistance Information | Download and View |
