Brand: Panduit
|
SKU:
192903
Panduit G3X2WH6 | Panduct Base Wiring Duct
Regular price
$66.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit G3X2WH6 | Panduct Base Wiring Duct
Regular price
$66.58
Unit price
Description
Description

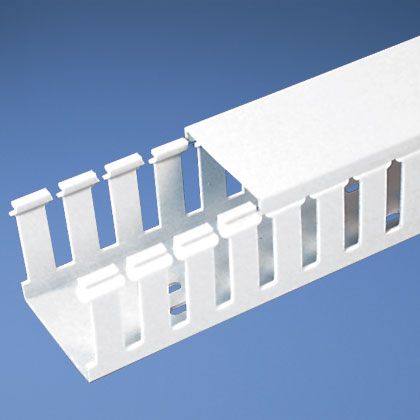

Panduit G3X2WH6 | Panduct Base Wiring Duct
Our Type G wide slot wiring duct securely accommodates various wire bundle sizes with its rigid design, enabling flexible cable organization in control panels and electrical enclosures.
Panduct type G wide slot wiring duct, 3 W x 2 H, 6’ length, PVC, white.
Panduit Panduct Slotted Wall Wiring Duct, Type G, 3 in Width, 6 ft Length, 2 mil Thickness, Wide Slot, 0.31 in Slot, Hole Mounting, Lead-Free PVC, White
Panduit - G3X2WH6 - Features
- Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower scorelines allows easy finger and sidewall section removals
- Reducing scrap and labor costs by protecting the surface during storage, handling and installation
- Specifications
- Made of lead-free PVC
- UL Recognized continuous use temperature: 122 F (50C)
- UL94 Flammability Rating of V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Provided with mounting holes
Specifications
Specifications
Panduit - G3X2WH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | G3X2WH6 |
| Components | Slotted Duct Standard |
| Fiber Duct H X W | 3" X 2" |
| Finish | White |
| Material | Pvc |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Duct Dimensions (In.) | 3.25W x 2.12H |
| Product Type | Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Color | White |
| Cover Part Number | C3WH6 |
| Flammability Rating | UL94 V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.25 |
| Overall Width (mm) | 82.6 |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| Slot Width (In.) | 0.31 |
| UPC | 07498354626 |
Panduit - G3X2WH6 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - G3X2WH6 - Videos
| Panduit G3X2WH6 Video 1 | Click to View |
|---|
