Panduit GACBJ618U | Structured Ground Auxiliary Cable Bracket Jumpe...
Description
Description
Securely and quickly connect cable bracket sections with our auxiliary cable bracket jumper kit, featuring heavy-duty lugs and corrosion protection for reliable grounding in electrical panels.

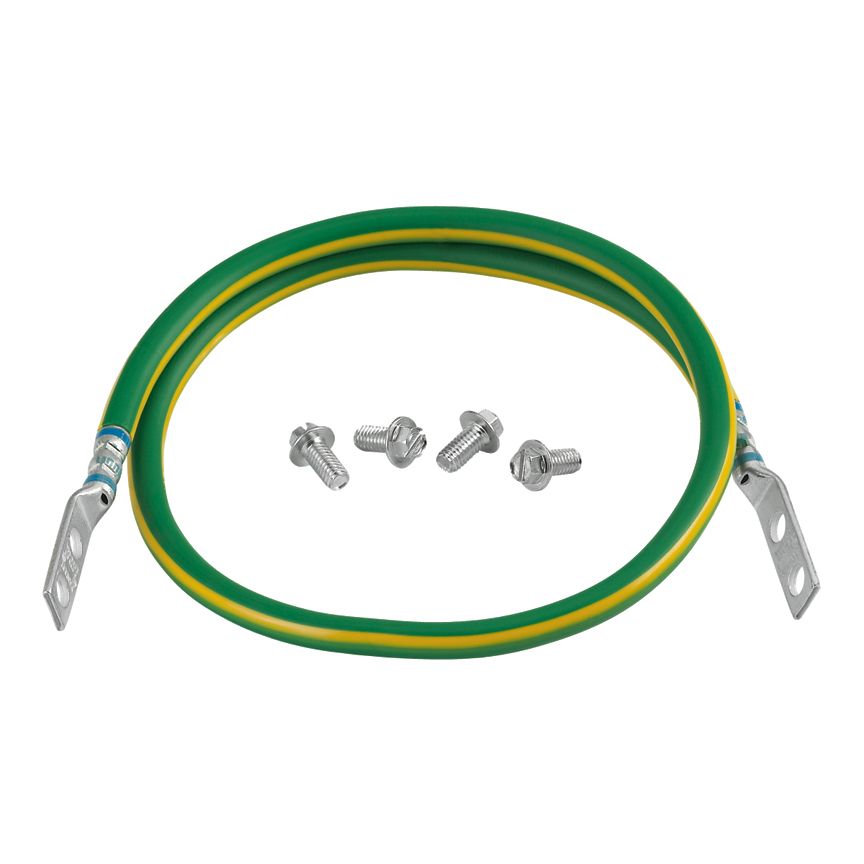

Auxiliary cable bracket jumper for bonding pathway sections; #6 AWG (16mm); 18.0" (457mm) length; factory terminated on both ends with straight, two-hole, long barrel compression lugs; provided with .16 oz. (5cc) of antioxidant and four mounting screw s.
Panduit StructuredGround Cable Bracket Jumper Kit, Auxiliary, 6 AWG Conductor, For Use With: Cable Pathway System, Green/Yellow, 18 in L
Panduit - GACBJ618U - Features
- Provide electrical continuity to Panduit Wyr-Grid system and most industry standard ladder rack eliminate the need to remove paint and drill holes for grounding jumpers, saving labor
- Maintains a 2 in distance from grounding conductors and other cables in the pathway
- Supports grounding conductors above or below pathways, enables bonding to pathway sections and across pathway junctions when required
- Pre terminated on both ends
- Complies with all industry requirements to ensure a high level of safety and reliability
- Bonds the rack or cabinet to the (TGB)
- Bonds ladder rack sections together without drilling holes in the ladder rack
- Supports grounding conductors in the telecommunications room, allows separation of grounding conductors from other cables on the ladder rack
- Holds up to four conductors in sizes up to 750 kcmil
- Bonds all 1 1/2" and 2" ladder rack rails
- Paint piercing teeth provide electrical continuity between ladder rack members while minimizing debris
- Front and back mounting screw options allow easy installation and visual inspection
Specifications
Specifications
Panduit - GACBJ618U - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GACBJ618U |
| Component | Grounding Kits |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Overall Length (In.) | 18 |
| Overall Length (mm) | 457 |
| Color | Green/Yellow |
| Application | Telecom/Data Center |
| Product Type | Auxiliary Cable Bracket Jumper Kit |
| UPC | 07498399943 |
Panduit - GACBJ618U - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7326.90.8688 |
