Panduit GACBJ68U | Structured Ground Auxiliary Cable Bracket Jumper...
Description
Description
Securely and quickly connect cable bracket sections with our auxiliary cable bracket jumper kit, featuring heavy-duty lugs and corrosion protection for reliable grounding in electrical panels.

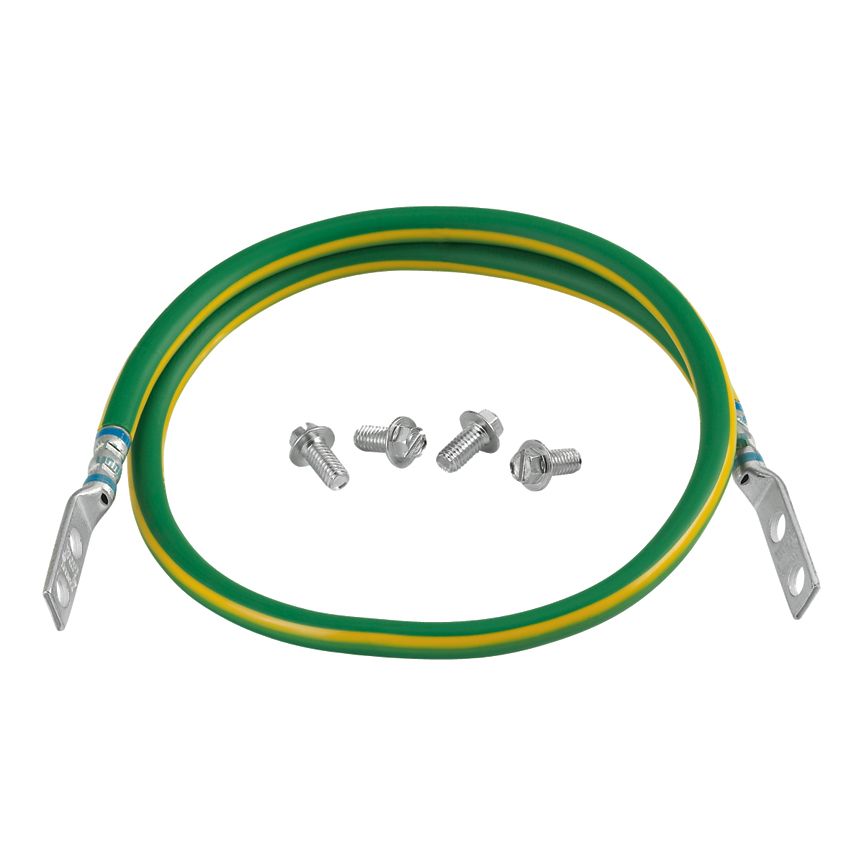

Auxiliary cable bracket jumper for bonding pathway sections; #6 AWG (16mm2); 8.0 (203mm) length; factory terminated on both ends with straight, two-hole, long barrel compression lugs; provided with .16 oz. (5cc) of antioxidant and four mounting screws.
Panduit StructuredGround Cable Bracket Jumper Kit, Auxiliary, 6 AWG Conductor, Straight Angle, For Use With: Cable Pathway System, Green/Yellow, 8 in L
Panduit - GACBJ68U - Features
- Provide electrical continuity to Panduit Wyr-Grid system and most industry standard ladder rack eliminate the need to remove paint and drill holes for grounding jumpers, saving labor
- Maintains a 2 in distance from grounding conductors and other cables in the pathway
- Supports grounding conductors above or below pathways, enables bonding to pathway sections and across pathway junctions when required
- Pre terminated on both ends
- Complies with all industry requirements to ensure a high level of safety and reliability
- Bonds the rack or cabinet to the (TGB)
Specifications
Specifications
Panduit - GACBJ68U - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GACBJ68U |
| Application | Rack/Cabinet/Enclosure |
| Component | Jumper Kits |
| Connection Type | Mechanical |
| Material Rating | Copper |
| Ground Rod Material | Copperbonded |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Color | Green/Yellow |
| Application | Telecom/Data Center |
| Product Type | Auxiliary Cable Bracket Jumper Kit |
| UPC | 07498308977 |
Panduit - GACBJ68U - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7326.90.8688 |
