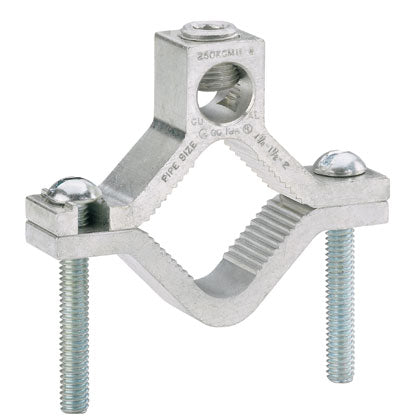

Panduit GC-15A-Q | Al Grnd Clamp, Dual Rated, 14-1/0 AWG, 25PK
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround Mechanical Connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe, and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line of StructuredGround Mechanical Connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.
Panduit - GC-15A-Q - Features
- Made from high strength, extruded aluminum alloy to provide long term durability
- Tin-plated to inhibit corrosion and oxidation and for low contact resistance
- Plated steel screws provide high strength and inhibit corrosion
- Accommodates a wide range of pipe, tube, and conductor sizes minimizes inventory requirements
- Dual-rated for grounding aluminum or copper code conductors to copper water pipe, galvanized pipe or steel conduit
Specifications
Specifications
Panduit - GC-15A-Q - Specifications
| Product Type | Grounding Clamp |
|---|---|
| Sub Brand | StructuredGround™ |
| Material | Aluminum |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Overall Width (In.) | 0.69 |
| Overall Width (mm) | 17.5 |
| Application | Utility/Ground Grid |
| Note | Not for ground rods, for conduit pipe or water tube sizes 1/2 - 3/4 - 1 |
Panduit - GC-15A-Q - Package Includes
| UPC | 07498345137 |
|---|---|
| Std. Pkg. Qty. | 25 |
| Std. Pkg. Volume (cf) | 0.1221 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
