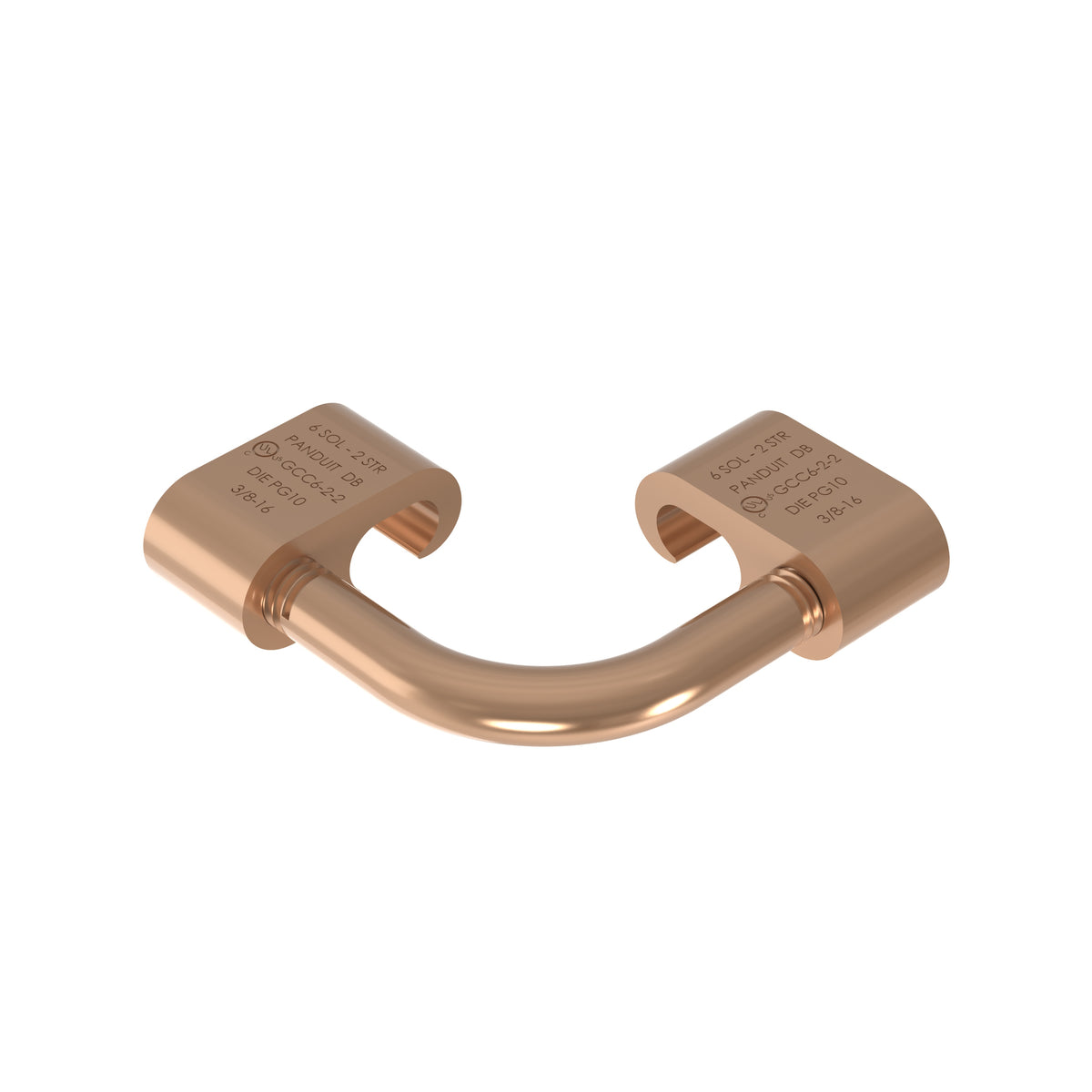

Panduit GCC6-2-2 | Grounding Cross Connector | UPC - 61305666832
Regular price
$46.02
Unit price
Brand: Panduit
|
SKU:
10083399
Regular price
$46.02
Unit price
Description
Description
The GCC6-2-2 Grounding Cross Connector is for 6 Sol - 2 Str (10-35mm2) Main, 6 Sol - 2 Str (10-35mm2) Tap.
Panduit Panduit GCC6-2-2 | Grounding Cross Connector | UPC - 61305666832 Key Specs
| Sub Brand | StructuredGround |
| Connector Type | Cross Connector |
| Overall Length (In.) | 0.6 |
| Overall Length (mm) | 15.2 |
| Material | High Conductivity Copper |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35.6 |
| Maximum Copper Conductor Size (AWG SOL) | 2 |
| Maximum Copper Conductor Size (AWG STR) | 2 |
| Minimum Copper Conductor Size (AWG SOL) | 6 |
| Minimum Copper Conductor Size (AWG STR) | 6 |
| Panduit Die Index Number | PG10 |
| Color Code | Red |
| Standards Met | cULus Listed to UL 467 for direct burial grounding applications in earth or concrete. All parts are UL Listed to UL 486A/486B for power applications wire to wire combinations only. |
| Application | Utility/Ground Grid |
| Product Type | Grounding Cross Connector |
Panduit Panduit GCC6-2-2 | Grounding Cross Connector | UPC - 61305666832 Data Sheets
| Part Drawings | Figure 6 To 6 Series Copper Compression Grounding Tap Connectors | Download and View |
| Installation Documents | Figure 6 and GCC6 Grounding Connectors Installation Instruction T-PMPI-324-PC | Download and View |
Panduit Panduit GCC6-2-2 | Grounding Cross Connector | UPC - 61305666832 Environmental Information
| Panduit's RoHS Statement | Download and View |
