Brand: Panduit
|
SKU:
PAN-GCC6X61/0-1/0

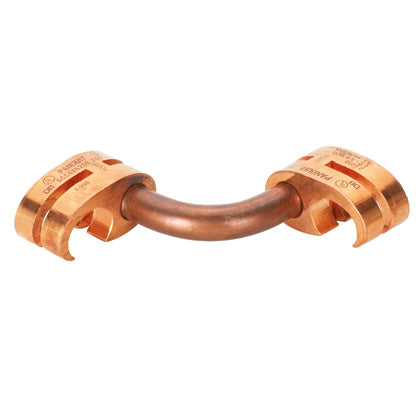

Panduit GCC6X61/0-1/0 | Cross Connector, Copper, 1/0-1/0, EA
Regular price
$55.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit GCC6X61/0-1/0 | Cross Connector, Copper, 1/0-1/0, EA
Regular price
$55.54
Unit price
Brand: Panduit
|
SKU:
PAN-GCC6X61/0-1/0
Regular price
$55.54
Unit price
Shipping calculated at checkout.
Description
Description
Panduit GCC6X61/0-1/0 | Cross Connector,Copper,1/0-1/0,EA
Compatible with 6" x 6" patch panels, our grounding connector ensures reliable electrical grounding with high-strength, weather-resistant design, ideal for outdoor power distribution systems.
Panduit StructuredGround Grounding Cross Connector, Type GCC, 6 AWG Solid Minimum Run/Tap, 1/0 AWG Stranded Maximum Run/Tap, 3/8 in Rod, Copper, Red, 0.94 in L x 0.66 in W x 1.37 in H Dimensions
Panduit - GCC6X61/0-1/0 - Features
- Only a single die required to crimp each element, which speeds installation and reduces costs
- Wide range taking ability and multi-conductor design provide flexibility with a minimum number of parts, allowing for conductor to conductor, conductor to rebar and conductor to ground rod applications
- Designed for the enhanced crimp process using patent pending technology meets IEEE 837 2002
- Slotted design allows quick and easy assembly of conductor to connector using Panduit cable ties included
- Pre-applied conductive antioxidant compound ensures a high quality mechanical and electrical bond, speeding installation
- Color coded and marked with Panduit die index numbers for proper crimp die selection
Specifications
Specifications
Panduit - GCC6X61/0-1/0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GCC6X61/0-1/0 |
| Sub Brand | StructuredGround |
| Connector Type | Cross Connector |
| Material | Copper |
| Overall Length (mm) | 23.9 |
| Overall Width (mm) | 16.8 |
| Overall Height (mm) | 34.8 |
| Panduit Die Index Number | PG10 |
| Color Code | Red |
| Standards Met | IEEE Std 837– 2002 UL 467 Listed and CSA 22.2 Certified |
| Application | Utility/Ground Grid |
| Product Type | Compression Tap |
| Part Features | Only a single die required to crimp each element, which speeds installation and reduces costs |
| UPC | 07498300946 |
Panduit - GCC6X61/0-1/0 - Videos
| Panduit GCC6X61/0-1/0 Video 1 | Click to View |
|---|
