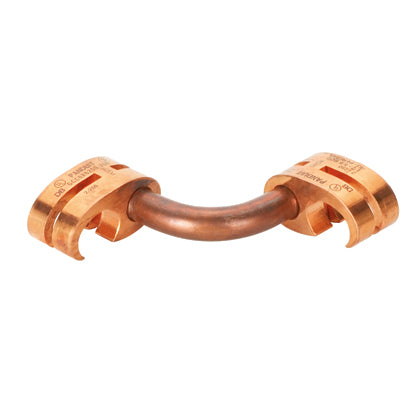

Panduit GCC6X6500-250 | Structured Ground Cross Con, 500-250, Copper, 1/2-3/4" Grd Rod
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit GCC6X6500-250 | Structured Ground Cross Con, 500-250, Coppe...
Description
Description
Compatible with 6" x 6" patch panels, our grounding connector ensures reliable electrical grounding with high-strength, weather-resistant design, ideal for outdoor power distribution systems.
Grounding cross connector for 250 - 500 kcmil (150 - 240mm) and #2 SOL - 250 kcmil (35 - 120mm) wire size.
Panduit StructuredGround Grounding Cross Connector, Type GCC, 250 to 500 kcmil Minimum Run/Tap, 2 AWG Solid to 250 kcmil Maximum Run/Tap, 1/2 to 3/4 in Rod, Copper, Blue, 1 in L x 1.32 to 1.16 in W x 2.48 to 2.29 in H
Panduit - GCC6X6500-250 - Features
- Only a single die required to crimp each element, which speeds installation and reduces costs
- Wide range taking ability and multi-conductor design provide flexibility with a minimum number of parts, allowing for conductor to conductor, conductor to rebar and conductor to ground rod applications
- Designed for the enhanced crimp process using patent pending technology meets IEEE 837 2002
- Slotted design allows quick and easy assembly of conductor to connector using Panduit cable ties included
- Pre-applied conductive antioxidant compound ensures a high quality mechanical and electrical bond, speeding installation
- Color coded and marked with Panduit die index numbers for proper crimp die selection
Specifications
Specifications
Panduit - GCC6X6500-250 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GCC6X6500-250 |
| Connection Type | Compression |
| Material Rating | Copper |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Connector Type | Cross Connector |
| Material | Copper |
| Material Properties | High Conductivity |
| Overall Length (In.) | 1.32 |
| Overall Length (mm) | 33.5 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 2.48 |
| Overall Height (mm) | 63 |
| Maximum Copper Conductor Size (kcmil) | 500 |
| Minimum Copper Conductor Size (kcmil) | 250 |
| Maximum Ground Rod Size (In.) | 3/4 |
| Maximum Ground Rod Size (mm) | 19.05 |
| Minimum Ground Rod Size (In.) | 1/2 |
| Minimum Ground Rod Size (mm) | 12.7 |
| Maximum Rebar Size (AWG) | 6 |
| Maximum Rebar Size (In.) | 3/4 |
| Maximum Rebar Size (mm) | 19.05 |
| Minimum Rebar Size (AWG) | 5 |
| Minimum Rebar Size (In.) | 5/8 |
| UPC | 07498300950 |
Panduit - GCC6X6500-250 - Videos
| Panduit GCC6X6500-250 Video 1 | Click to View |
|---|---|
| Panduit GCC6X6500-250 Video 2 | Click to View |
