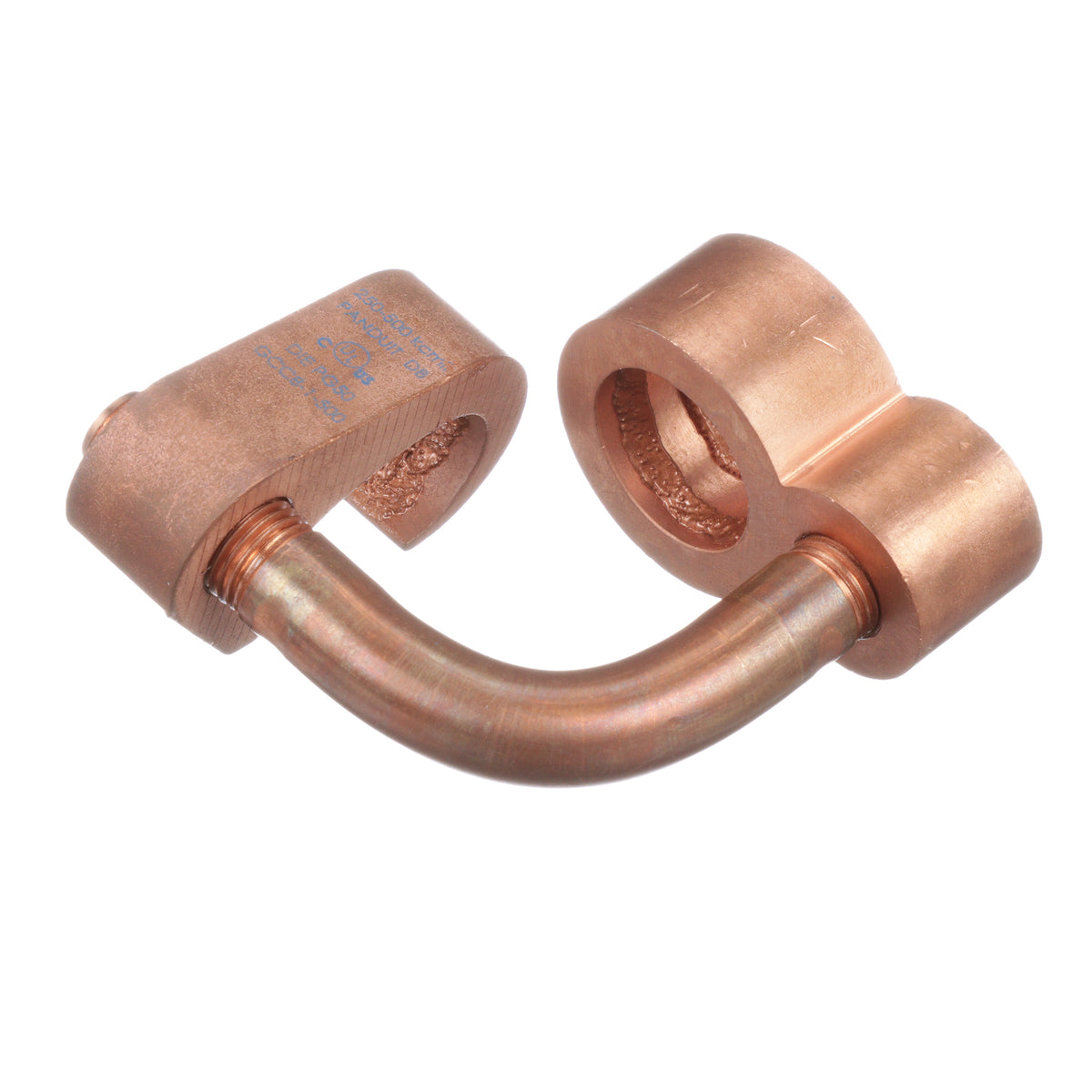

Panduit GCC8-5/8-250 | StructuredGround™ GCC8-1/2-250 Grd Con, 1/2-250, Copper
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit GCC8-5/8-250 | StructuredGround™ GCC8-1/2-250 Grd Con, 1/2-...
Description
Description
Panduit Grounding Cross Connector, 2 AWG to 250 kcmil Conductor, 5/8 in Rod, 8 x 6 Style, Copper, 0.89 in W x 2.1 in H
The GCC8-5/8-250 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete, use with Panduit or industry standard crimp tools and crimp dies.
The GCC8-5/8-250 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar ap plications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete, use with Panduit or industry standard crimp tools and crimp dies.
Panduit - GCC8-5/8-250 - Features
- Applications: Utility/Ground Grid
Specifications
Specifications
Panduit - GCC8-5/8-250 - Specifications
| UNSPSC Code | 39121400 |
|---|---|
| Technical Information | cULus Listed to UL 467 for direct burial grounding applications in earth or concrete. |
| Sub Brand | StructuredGround™ |
| Connector Type | Cross Connector |
| Material | Copper |
| Material Properties | High Conductivity |
| Overall Length (In.) | 0.91 |
| Overall Length (mm) | 23.11 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Overall Height (In.) | 2.1 |
| Overall Height (mm) | 53.3 |
| Maximum Copper Conductor Size (kcmil) | 250 |
| Minimum Copper Conductor Size (AWG STR) | 2 |
| Maximum Ground Rod Size (In.) | 5/8 |
| Maximum Ground Rod Size (mm) | 15.87 |
| Minimum Ground Rod Size (In.) | 5/8 |
| Minimum Ground Rod Size (mm) | 15.87 |
| Panduit Die Index Number | PG25 |
| Color Code | Black |
| Standards Met | cULus Listed to UL 467 for direct burial grounding applications in earth or concrete. |
| Application | Utility/Ground Grid |
| Product Type | Grounding Connector |
| UPC | 61305673278 |
Panduit - GCC8-5/8-250 - Package Information
| UPC | 61305673278 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0475 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
