Brand: Panduit
|
SKU:
PAN-GE128-C
Panduit GE128-C | GE128-C Grommet Edging, Natural, PA 6.6, 0.128" Max Panel, PK100
Regular price
$161.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit GE128-C | GE128-C Grommet Edging, Natural, PA 6.6, 0.128&qu...
Regular price
$161.47
Unit price
Description
Description
Panduit GE128-C | GE128-C Grommet Edging, Natural, PA 6.6, 0.128" Max Panel, PK100

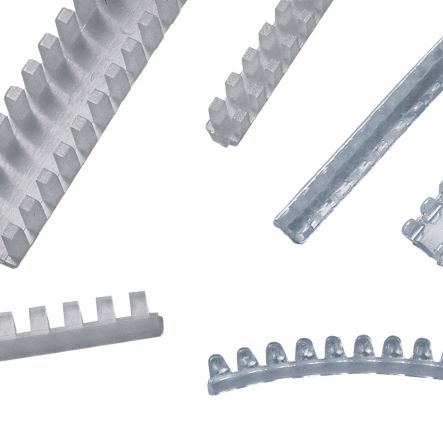

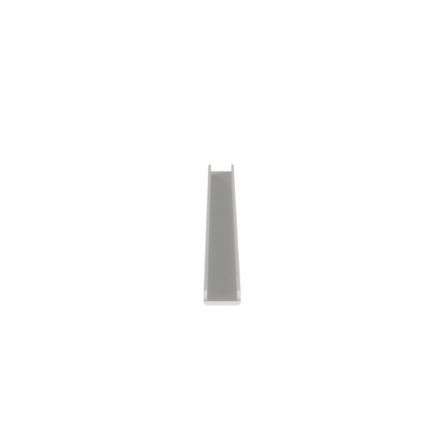

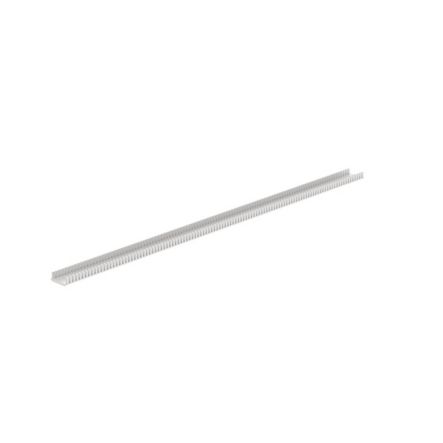

The GE128-C National Aerospace Standard Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Nylon material. Designed for 0.085" - 0.128" (2.2 mm - 3.3 mm) thick panels. 12.75" (323.9 mm) long. Color Natural. 100 per package.
Panduit GE128-C Military Specification Nylon Grommet Edging in 12.75"; strips.
Specifications
Specifications
Panduit - GE128-C - Product Categories
- Wire Routing, Management & Protection
- Grommet Edging
Panduit - GE128-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GE128-C |
| Item Description | GE128-C Grommet Edging, Natural, PA 6.6, 0.128" Max Panel, PK100 |
| Note | Complies to National Aerospace Standard NAMS21266 (Formerly Military Standard MS21266) |
| Product Type | Grommet Edging |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.128 |
| Maximum Compatible Panel Thickness (mm) | 3.3 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Compatible Panel Thickness (In.) | 0.085 |
| Minimum Compatible Panel Thickness (mm) | 2.2 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Height (In.) | 0.16 |
| Overall Height (mm) | 3.9 |
| Overall Width (In.) | 0.22 |
| Overall Width (mm) | 5.6 |
| Overall Length (ft.) | 1.06 |
| Overall Length (m) | 0.3 |
| Resistance Properties | Abrasion Protection |
| Standards Met | RoHS Compliant; NAMS21266 (formerly Military Standard MS21266) |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| Part Features | Provides protection for cables being installed where there might be sharp edges on straight edges |
Panduit - GE128-C - Package Information
| UPC | 07498360134 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0743 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.7427 |
