Brand: Panduit
|
SKU:
359585-EA
Panduit GE192-L | Grommet Edging, Slot Strip, Nylon, Natural, Panel Thickness 0.128, 0.192
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit GE192-L | Grommet Edging, Slot Strip, Nylon, Natural, Panel...
Regular price
$3.00
Unit price
Description
Description

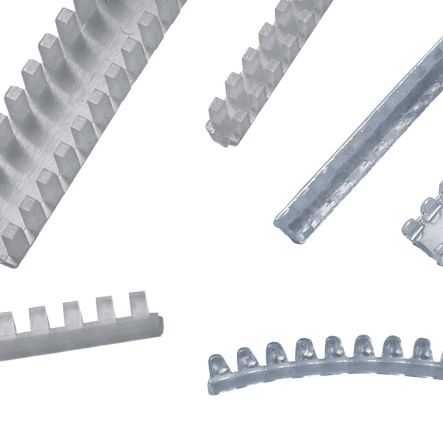

Panduit GE192-L | GE192-L Grommet Edging, Natural, PA 6.6, 0.192" Max Panel, PK50
The GE128-C National Aerospace Standard Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Nylon material. Designed for 0.128" - 0.192" (3.3 mm - 4.9 mm) thick panels. 12.75" (323.9 mm) long. Color Natural. 50 per package.
Panduit - GE192-L - Features
- Military Specification Nylon Grommet Edging in 12.75"; strips.
Specifications
Specifications
Panduit - GE192-L - Product Categories
- Wire Routing, Management & Protection
- Grommet Edging
Panduit - GE192-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GE192-L |
| Item Description | GE192-L Grommet Edging, Natural, PA 6.6, 0.192" Max Panel, PK50 |
| Note | Complies to National Aerospace Standard NAMS21266 (Formerly Military Standard MS21266) |
| Product Type | Grommet Edging |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.192 |
| Maximum Compatible Panel Thickness (mm) | 4.9 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Compatible Panel Thickness (In.) | 0.128 |
| Minimum Compatible Panel Thickness (mm) | 3.3 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Height (In.) | 0.23 |
| Overall Height (mm) | 5.8 |
| Overall Width (In.) | 0.33 |
| Overall Width (mm) | 8.3 |
| Overall Length (ft.) | 1.06 |
| Overall Length (m) | 0.3 |
| Resistance Properties | Abrasion Protection |
| Standards Met | RoHS Compliant; NAMS21266 (formerly Military Standard MS21266) |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| Part Features | Provides protection for cables being installed where there might be sharp edges on straight edges |
Panduit - GE192-L - Package Information
| UPC | 07498360136 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 0.0579 |
| Standard Ctn. Qty. | 500 |
| Standard Ctn. Volume (cf) | 0.5793 |
Panduit - GE192-L - Videos
| Video 1 | Click to View |
|---|
