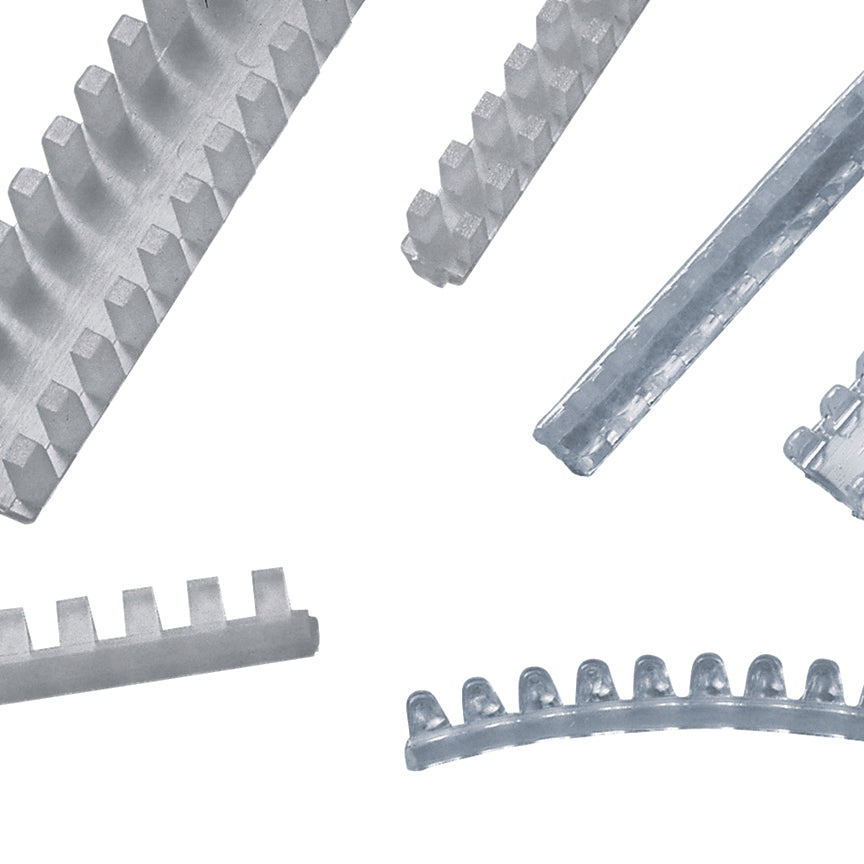

Panduit GE85-C | Military Standard MS21266 Grommet Edging
Description
Description
Protects and prevent wires and cables from chafing against sharp edges of panel walls and knockouts. In addition to standard grommet edging, Panduit offers grommet edging with a pressure sensitive adhesive that lines the base of the product, providing an easy, clean and secure application. Grommet edging is available in nylon 6 or natural or weather-resistant polyethylene for use on straight or irregular shaped surfaces. Grommet edging is a part of the innovative solutions Panduit provides to protect wire and cable to help you manage your physical infrastructure.
Panduit Grommet Edging Strip, Type GE Non-Adhesive Slit, 0.052 to 0.085 in Panel Thickness, 100 ft Length, 0.16 in Height, 0.18 in Width, -40 to 149 deg F, Flammability: UL94 V-2, Nylon 6.6, Natural
Our military-grade grommet edging shields wires and cables from damage caused by sharp edges in panels and enclosures, ensuring long-lasting performance and exceptional quality.
The GE85-C National Aerospace Standard Slotted Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Nylon material. Designed for 0.052" - 0.085" (1.3 mm - 2.2 mm) thick panels. 12.75" (323 .9 mm) long. Color Natural. 100 per package.
Panduit - GE85-C - Features
- Non-conductive lock body and shackle provide protection against electrical hazards
- Key-retention feature means that key cannot be removed from padlock when open
- Six pin cylinder design allows for a large number of key change options
- Applications: To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts.
- Provides protection for cables being installed where there might be sharp edges on straight edges
Specifications
Specifications
Panduit - GE85-C - Specifications
| Approvals | None |
|---|---|
| Color | Natural |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Material | Nylon |
| Type | Grommet - Open |
| UNSPSC Code | 39131603 |
| Technical Information | RoHS Compliant; NAMS21266 (formerly Military Standard MS21266) |
| Note | Complies to National Aerospace Standard NAMS21266 (Formerly Military Standard MS21266) |
| Product Type | Grommet Edging |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.085 |
| Maximum Compatible Panel Thickness (mm) | 2.2 |
| Minimum Compatible Panel Thickness (In.) | 0.052 |
| Minimum Compatible Panel Thickness (mm) | 1.3 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Length (ft.) | 1.06 |
| Overall Length (m) | 0.3 |
| Overall Width (In.) | 0.18 |
| Overall Width (mm) | 4.5 |
| Overall Height (In.) | 0.16 |
| Overall Height (mm) | 3.9 |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | RoHS Compliant; NAMS21266 (formerly Military Standard MS21266) |
| UPC | 07498360132 |
Panduit - GE85-C - Package Information
| UPC | 07498360132 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0743 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.7427 |
Panduit - GE85-C - Videos
| Panduit GE85-C Videos | Click to View |
|---|
