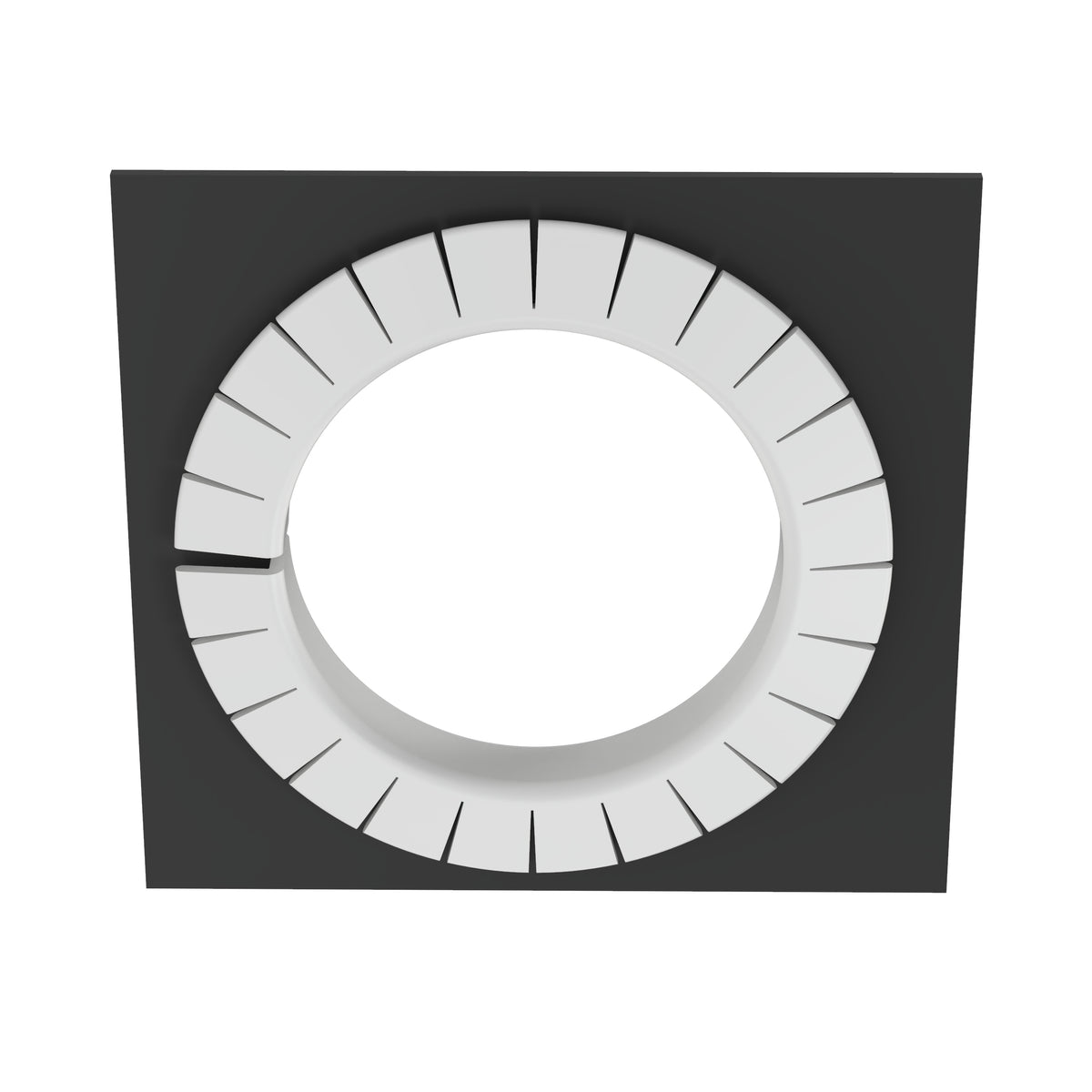

Panduit GEE144F-A-C0 | Slotted Grommet Edging | UPC - 07498362717
Description
Description
Protects and prevent wires and cables from chafing against sharp edges of panel walls and knockouts. In addition to standard grommet edging, Panduit offers grommet edging with a pressure sensitive adhesive that lines the base of the product, providing an easy, clean and secure application. Grommet edging is available in nylon 6 or natural or weather-resistant polyethylene for use on straight or irregular shaped surfaces. Grommet edging is a part of the innovative solutions Panduit provides to protect wire and cable to help you manage your physical infrastructure.
Panduit Grommet Edging, Type GEE Adhesive Lined Slotted Slit, 0.099 to 0.144 in Panel Thickness, 100 ft Length, 0.22 in Height, 0.21 in Width, -40 to 122 deg F, Flammability: UL94 HB, Polyethylene, Black
Features + Benefits
- Provides protection for cables being installed where there might be sharp edges with irregular shaped and round panel holes
Panduit GEE144F-A-C0 Key Specs
| Note | Designed for irregular shaped or round panel holes |
| Product Type | Slotted Grommet Edging |
| Color | Black |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Maximum Compatible Panel Thickness (In.) | 0.144 |
| Maximum Compatible Panel Thickness (mm) | 3.7 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Compatible Panel Thickness (In.) | 0.099 |
| Minimum Compatible Panel Thickness (mm) | 2.5 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Height (In.) | 0.22 |
| Overall Height (mm) | 5.6 |
| Overall Width (In.) | 0.21 |
| Overall Width (mm) | 5.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Resistance Properties | Weather-Resistant Abrasion Protection |
