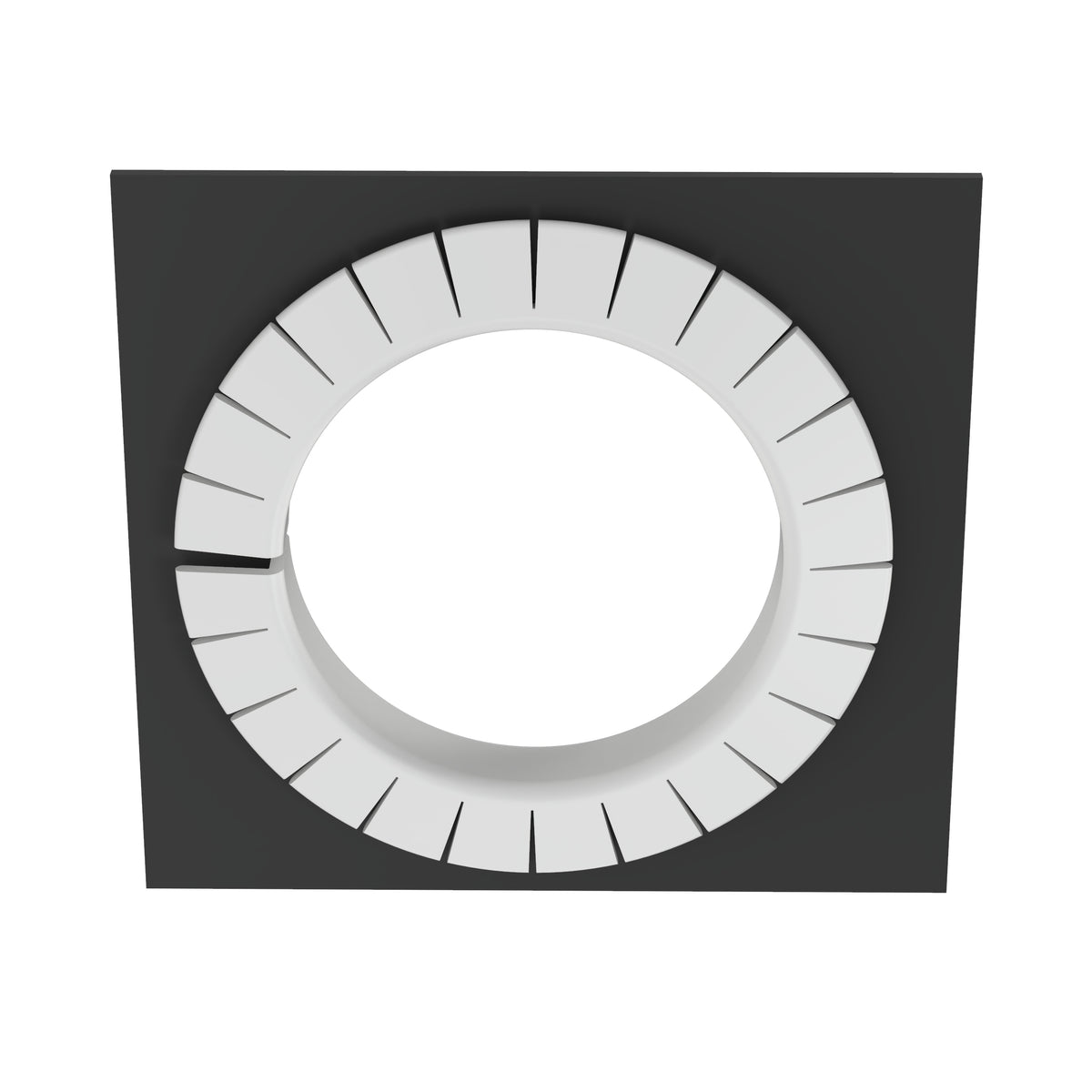

Panduit GEE144F-C | Slotted Grommet Edging | UPC - 07498360169
Description
Description
Protects and prevent wires and cables from chafing against sharp edges of panel walls and knockouts. In addition to standard grommet edging, Panduit offers grommet edging with a pressure sensitive adhesive that lines the base of the product, providing an easy, clean and secure application. Grommet edging is available in nylon 6 or natural or weather-resistant polyethylene for use on straight or irregular shaped surfaces. Grommet edging is a part of the innovative solutions Panduit provides to protect wire and cable to help you manage your physical infrastructure.
Panduit Grommet Edging, Type GEE Non-Adhesive Slotted Slit, 0.099 to 0.144 in Panel Thickness, 100 ft Length, 0.22 in Height, 0.21 in Width, -40 to 122 deg F, Flammability: UL94 HB, Polyethylene, Natural
Features + Benefits
- Provides protection for cables being installed where there might be sharp edges with irregular shaped and round panel holes
Panduit GEE144F-C | Slotted Grommet Edging | UPC - 07498360169 Key Specs
| Note | Designed for irregular shaped or round panel holes |
| Product Type | Slotted Grommet Edging |
| Color | Natural |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Maximum Compatible Panel Thickness (In.) | 0.144 |
| Maximum Compatible Panel Thickness (mm) | 3.7 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Compatible Panel Thickness (In.) | 0.099 |
| Minimum Compatible Panel Thickness (mm) | 2.5 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Height (In.) | 0.22 |
| Overall Height (mm) | 5.6 |
| Overall Width (In.) | 0.21 |
| Overall Width (mm) | 5.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Resistance Properties | Abrasion Protection |
Panduit GEE144F-C | Slotted Grommet Edging | UPC - 07498360169 Data Sheets
| Product Bulletins | Grommet Edging: WACB34 | Download and View |
| Technical References | Abrasion Protection Shelf Life | Download and View |
| Brochures | Smart Control Panel Solutions Brosures CPCB186-SA-ENG | Download and View |
Panduit GEE144F-C | Slotted Grommet Edging | UPC - 07498360169 Environmental Information
| Panduit's RoHS Statement | Download and View |
