Panduit GEE36F-C | Slotted Grommet, Natural, PE, 0.04" Max Pan...
Description
Description

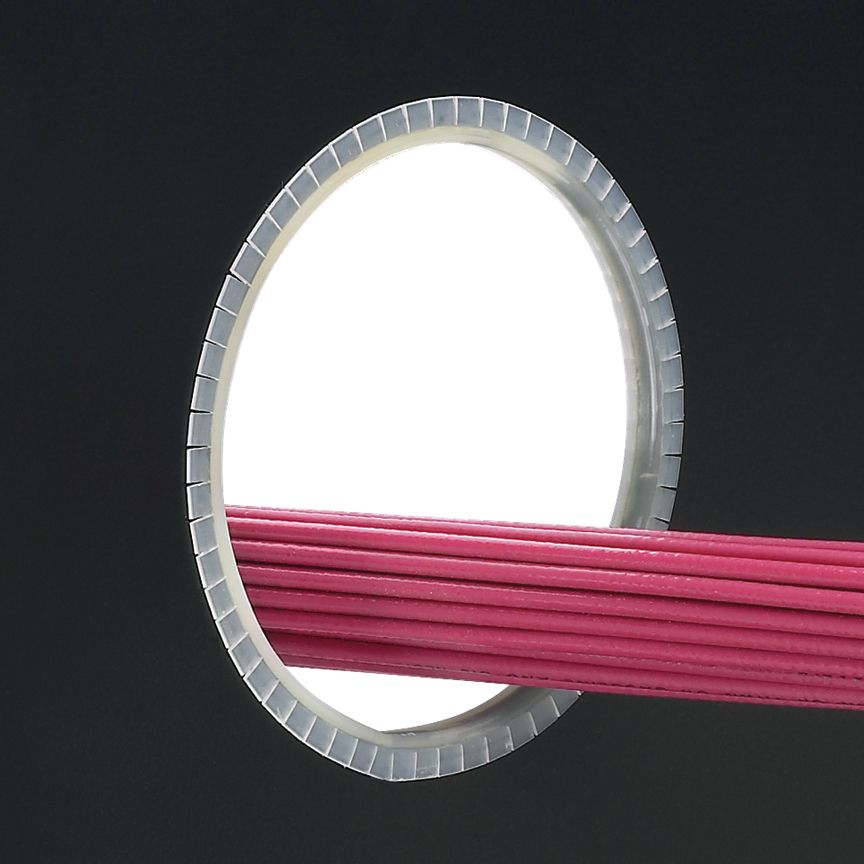

Our slotted grommet edging safeguards wires and cables from damage on various panel shapes, providing flexible protection in diverse applications.
Protects and prevent wires and cables from chafing against sharp edges of panel walls and knockouts. In addition to standard grommet edging, Panduit offers grommet edging with a pressure sensitive adhesive that lines the base of the product, providing an easy, clean and secure application. Grommet edging is available in nylon 6 or natural or weather-resistant polyethylene for use on straight or irregular shaped surfaces. Grommet edging is a part of the innovative solutions Panduit provides to protect wire and cable to help you manage your physical infrastructure.
Panduit Grommet Edging, Type GEE Non-Adhesive Slotted Slit, 0.026 to 0.036 in Panel Thickness, 100 ft Length, 0.12 in Height, 0.11 in Width, -40 to 122 deg F, Flammability: UL94 HB, Polyethylene, Natural
Panduit - GEE36F-C - Features
- Provides protection for cables being installed where there might be sharp edges with irregular shaped and round panel holes
Specifications
Specifications
Panduit - GEE36F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GEE36F-C |
| Product Type | Slotted Grommet Edging |
| Color | Natural |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Maximum Compatible Panel Thickness (In.) | 0.036 |
| Maximum Compatible Panel Thickness (mm) | 0.9 |
| Minimum Compatible Panel Thickness (In.) | 0.026 |
| Minimum Compatible Panel Thickness (mm) | 0.7 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Overall Width (In.) | 0.11 |
| Overall Width (mm) | 2.7 |
| Overall Height (In.) | 0.12 |
| Overall Height (mm) | 3 |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | RoHS Compliant |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| UPC | 07498360171 |
Panduit - GEE36F-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.4590 |
Panduit - GEE36F-C - Videos
| Panduit GEE36F-C Video 1 | Click to View |
|---|
