Panduit GEE62F-A-C | Slotted Grommet, Natural, Adh. PE, 1.6mm Max P...
Description
Description
Our slotted grommet edging, with adhesive securing the cables against panel edges, prevents wear and tear while simplifying installation, and the slots allow for flexibility of various cable sizes.

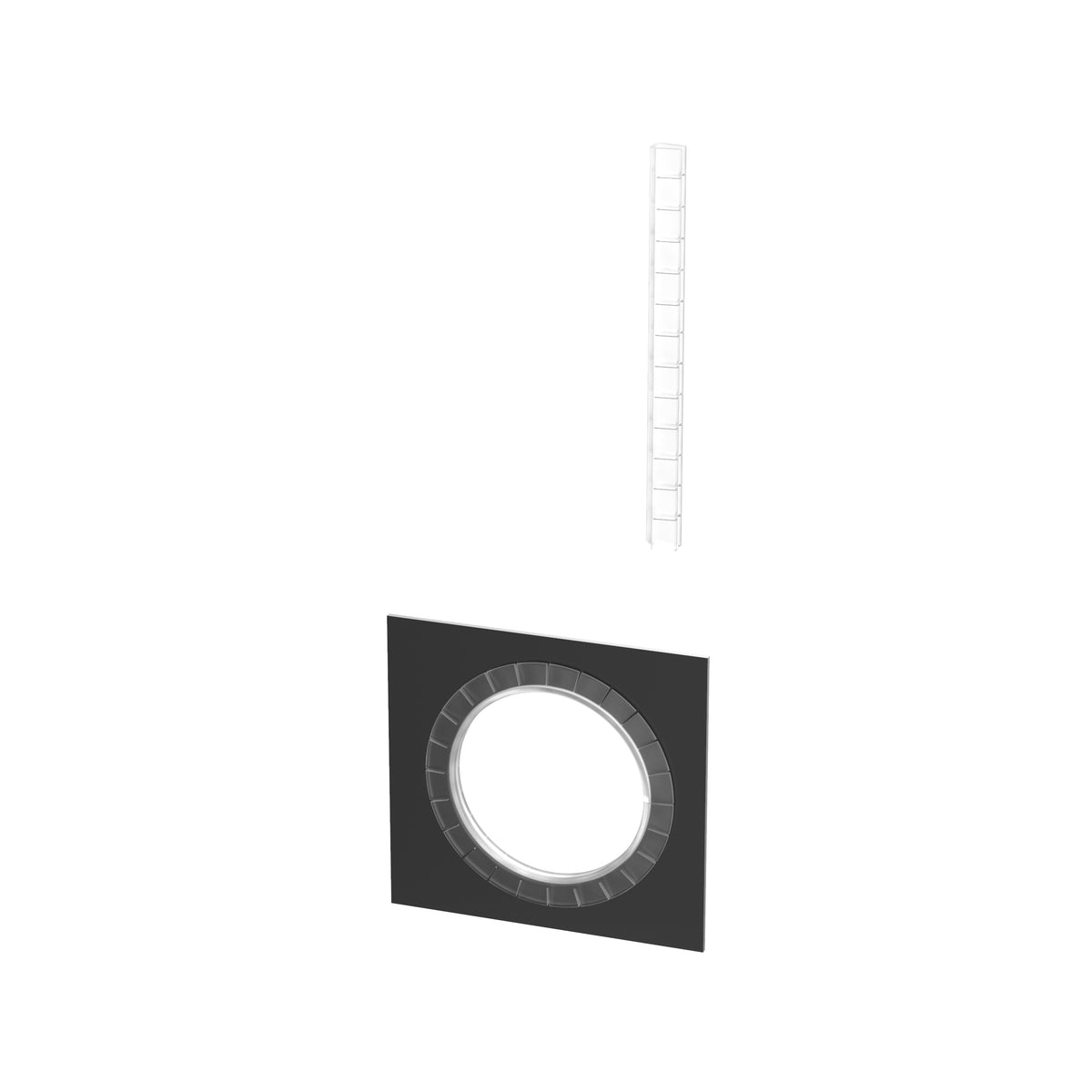

The GEE62F-A-C Polyethylene Slotted Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Slotted edging recommended for use on irregularly shaped and round panel holes. The material is hig hly flexible, while the adhesive lining ensures the product will stay in place. Packaged on a 100’ (30.5m) reel for easy handling and dispensing. Polyethylene. Designed for 0.036"-0.062" (0.9mm-1.6mm) thick panels. Color Natural. 1 per package.
Protects and prevent wires and cables from chafing against sharp edges of panel walls and knockouts. In addition to standard grommet edging, Panduit offers grommet edging with a pressure sensitive adhesive that lines the base of the product, providing an easy, clean and secure application. Grommet edging is available in nylon 6 or natural or weather-resistant polyethylene for use on straight or irregular shaped surfaces. Grommet edging is a part of the innovative solutions Panduit provides to protect wire and cable to help you manage your physical infrastructure.
Panduit Grommet Edging, Type GEE Adhesive Lined Slotted Slit, 0.036 to 0.062 in Panel Thickness, 100 ft Length, 0.16 in Height, 0.13 in Width, -40 to 122 deg F, Flammability: UL94 HB, Polyethylene, Natural
Panduit - GEE62F-A-C - Features
- Provides protection for cables being installed where there might be sharp edges with irregular shaped and round panel holes
- General purpose material for indoor use up to 122F (50C)
- Provided in .030" (0.8mm) thick material making it highly flexible
- Use on irregularly shaped and round panel holes
- Adhesive ensures product stays in place
Specifications
Specifications
Panduit - GEE62F-A-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GEE62F-A-C |
| UNSPSC Code | 39131603 |
| Note | Designed for irregular shaped or round panel holes |
| Product Type | Slotted Grommet Edging |
| Color | Natural |
| Material | Polyethylene |
| Maximum Compatible Panel Thickness (In.) | 0.06 |
| Maximum Compatible Panel Thickness (mm) | 1.6 |
| Minimum Compatible Panel Thickness (In.) | 0.036 |
| Minimum Compatible Panel Thickness (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Overall Width (In.) | 0.13 |
| Overall Width (mm) | 3.3 |
| Overall Height (In.) | 0.16 |
| Overall Height (mm) | 4.1 |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | RoHS Compliant |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| UPC | 07498362712 |
Panduit - GEE62F-A-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.4590 |
