Brand: Panduit
|
SKU:
GEE71N-C
Panduit GEE71N-C | GEE71N-C Slotted Grommet, Natural, PA 6.6, 0.08" Max Panel, PK1
Regular price
$157.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit GEE71N-C | GEE71N-C Slotted Grommet, Natural, PA 6.6, 0.08&...
Regular price
$157.66
Unit price
Description
Description

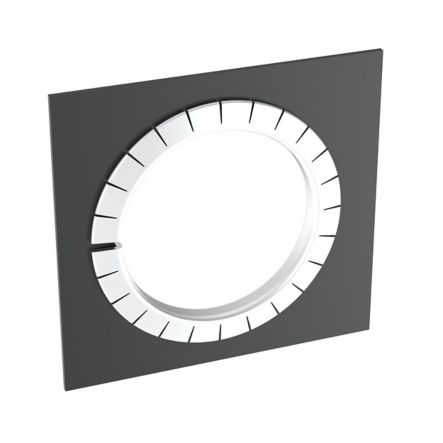

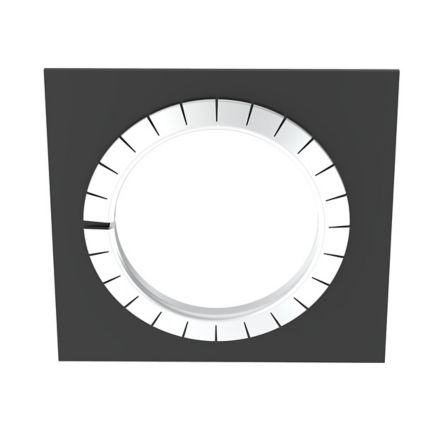

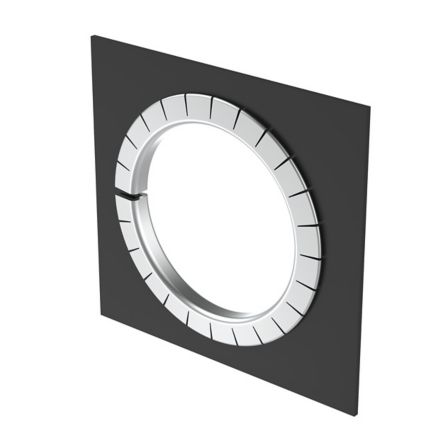

Panduit GEE71N-C | GEE71N-C Slotted Grommet, Natural, PA 6.6, 0.08" Max Panel, PK1
Slotted grommet edging, .079" thickness, nylon 6, natural.
Panduit - GEE71N-C - Features
- Slotted Wall Nylon Grommet Edging for use in cut outs up to 149F (65C)
- Highly flexible self extinguishing Nylon material for indoor use up to 149F (65C)
- Use in round panel holes
Specifications
Specifications
Panduit - GEE71N-C - Product Categories
- Wire Routing, Management & Protection
- Grommet Edging
Panduit - GEE71N-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GEE71N-C |
| Item Description | GEE71N-C Slotted Grommet, Natural, PA 6.6, 0.08" Max Panel, PK1 |
| Product Type | Slotted Grommet Edging |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.079 |
| Maximum Compatible Panel Thickness (mm) | 2 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Compatible Panel Thickness (In.) | 0.063 |
| Minimum Compatible Panel Thickness (mm) | 1.6 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Height (In.) | 0.14 |
| Overall Height (mm) | 3.6 |
| Overall Width (In.) | 0.15 |
| Overall Width (mm) | 3.8 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Resistance Properties | Abrasion Protection |
| Standards Met | RoHS Compliant |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| Part Features | Provides protection for cables being installed where there might be sharp edges with irregular shaped and round panel holes. |
Panduit - GEE71N-C - Package Information
| UPC | 07498360203 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1284 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - GEE71N-C - Videos
| Video 1 | Click to View |
|---|
