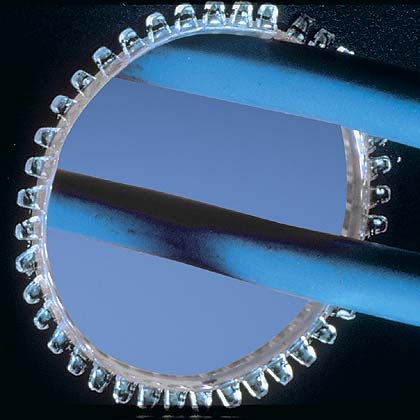

Panduit GEE98N-C | Slotted Grommet Edging
Description
Description
Our slotted grommet edging safeguards wires and cables from damage on various panel shapes, providing flexible protection in diverse applications.
Slotted Wall Nylon Grommet Edging for use in cut outs up to 149F (65C)
Protects and prevent wires and cables from chafing against sharp edges of panel walls and knockouts. In addition to standard grommet edging, Panduit offers grommet edging with a pressure sensitive adhesive that lines the base of the product, providing an easy, clean and secure application. Grommet edging is available in nylon 6 or natural or weather-resistant polyethylene for use on straight or irregular shaped surfaces. Grommet edging is a part of the innovative solutions Panduit provides to protect wire and cable to help you manage your physical infrastructure.
Panduit Grommet Edging, Type GEE Non-Adhesive Slotted Slit, 0.091 to 0.106 in Panel Thickness, 100 ft Length, 0.14 in Height, 0.18 in Width, -40 to 149 deg F, Flammability: UL94 V-2, Nylon 6.6, Natural
Panduit - GEE98N-C - Features
- Provides protection for cables being installed where there might be sharp edges on straight edges
- Highly flexible self extinguishing Nylon material for indoor use up to 149F (65C)
- Use in round panel holes
Specifications
Specifications
Panduit - GEE98N-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GEE98N-C |
| UNSPSC Code | 31000000 |
| Product Type | Slotted Grommet Edging |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.106 |
| Maximum Compatible Panel Thickness (mm) | 2.7 |
| Minimum Compatible Panel Thickness (In.) | 0.091 |
| Minimum Compatible Panel Thickness (mm) | 2.3 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Overall Width (In.) | 0.18 |
| Overall Width (mm) | 4.6 |
| Overall Height (In.) | 0.14 |
| Overall Height (mm) | 3.6 |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | RoHS Compliant |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| UPC | 07498360204 |
